Weidmuller 9457230800

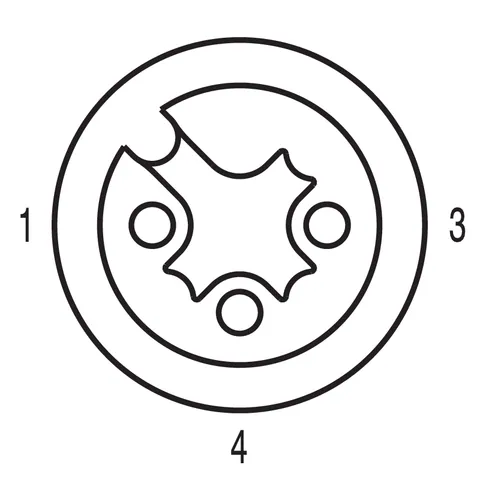

M12 Connector Line SAIL-M12GM12G-3-8.0U
Product Description
The M12 connector line, designated as SAIL-M12GM12G-3-8.0U, is designed for sensor and actuator connections, featuring a straight pin to socket configuration. With a total length of 8 meters, this line is suitable for various industrial applications.
Constructed with a PUR sheath, this connector has a rated voltage of 250 V and a rated current of 4 A. It boasts an impressive temperature range, with operation capabilities between -25°C and +80°C for the housing. The cable features a core cross-section of 0.34 mm², and the outer diameter measures 4.3 ± 0.2 mm. This product is compliant with IEC standards, specifically IEC 61076-2-101, ensuring reliable performance.
The connector provides a protection degree of IP65, IP66, IP67, and IP68 when properly installed. It is suitable for use in cable carriers and demonstrates excellent resistance to torsion, bending, and environmental factors. With a pollution severity rating of 3 and a gold-plated contact surface, it maintains reliability over ≥ 100 plugging cycles.
Need more information?
Offer details
- Offer from:
Trusted supplier — Italy, member since 2021, 10–19 employees - Availability:
- On requestLead time to be confirmed
- Warranty:
- 12 months
- Condition:
- New Factory Sealed
Specifications
- Brand
- Weidmuller
- Approvals
- CULUS
- UL File Number Search
- E307231
- Connector standard
- IEC 61076-2-101
- Certificate no. (cULus)
- E307231
- AF size
- 12 mm
- Version
- pin, straight - socket, straight
