Weidmuller 9457342000

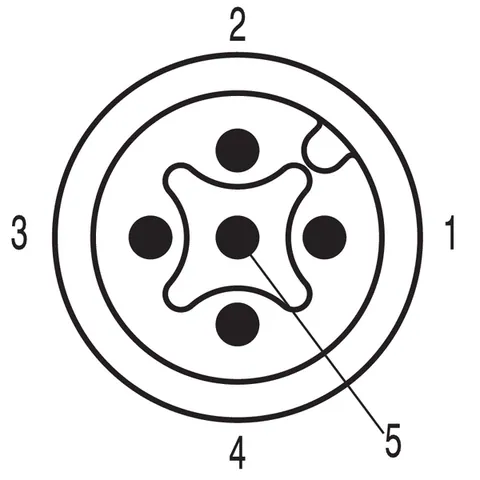

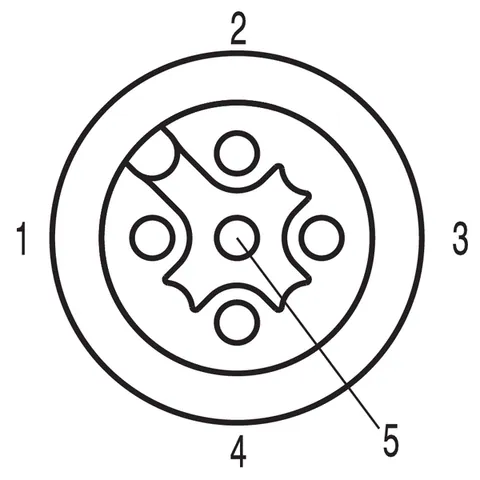

This M12 connector cable, designated as SAIL-M12GM12G-5-20U, features a 5-pole design and a length of 20 meters, making it suitable for various sensor and actuator applications. The cable is constructed from polyurethane (PUR), ensuring durability and flexibility.

It adheres to the IEC 61076-2-101 connector standard and is rated for a voltage of 125 V and a current of 4 A. The cable's design includes a gold-plated contact surface and a temperature range suitable for both stationary (-40…+80 °C) and moving applications (-25…80 °C). Additionally, it is classified with a protection degree of IP65/IP66/IP67/IP68 when properly connected.

With a core cross-section of 0.34 mm² and an outside diameter of 5 ± 0.2 mm, the cable is unshielded and features a color-coded arrangement of brown, white, blue, black, and grey. The assembly allows for a minimum bending radius of 5 x cable diameter when stationary and 10 x cable diameter when in motion. It can withstand up to 2 million bending cycles and is resistant to hydrolysis and microbes, ensuring longevity in various environments.
