Weidmuller 9457490090

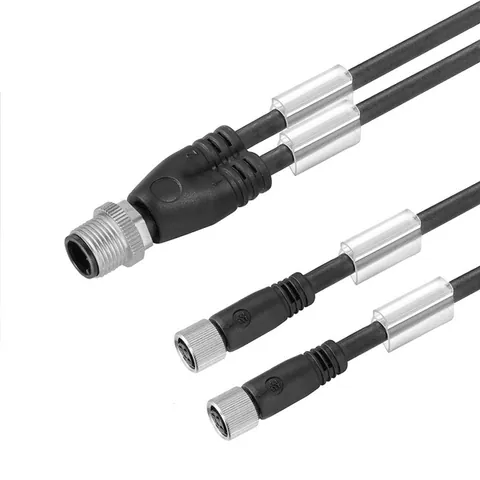

This connecting line, designated as SAIL-ZW-M8BG-3-0.9U, is constructed for sensor and actuator integration with a length of 0.9 m. It includes a M12/M8 connector configuration and features twin cabling with straight pins. The assembly has a net weight of 68 g and is made from a sheath material of PUR, ensuring flexibility and durability.

Conforming to standards IEC 61076-2-101 and IEC 61076-2-104, this line is suitable for environments requiring protection with an IP rating of IP65, IP66, IP67, and IP68 when properly connected. The rated voltage is 60 V with a current rating of 4 A, making it suitable for various industrial applications.

It operates effectively within a temperature range of -25 °C to +80 °C, and features gold-plated contact surfaces for optimal connectivity. The cable is not shielded and has a core cross-section of 0.25 mm², with an outside diameter of 4.1 ± 0.2 mm. The color coding follows brown, blue, and black for easy identification.

Additionally, the cable is designed to withstand bending cycles of up to 2 million and is resistant to hydrolysis and microbial growth, making it suitable for dynamic applications. The tightening torque specifications are 0.5 - 0.6 Nm for M8 and 0.8 - 1.2 Nm for M12 connections.
