Weidmuller 9457490150
SAIL-ZW-M8BG-3-1.5U
Product Description

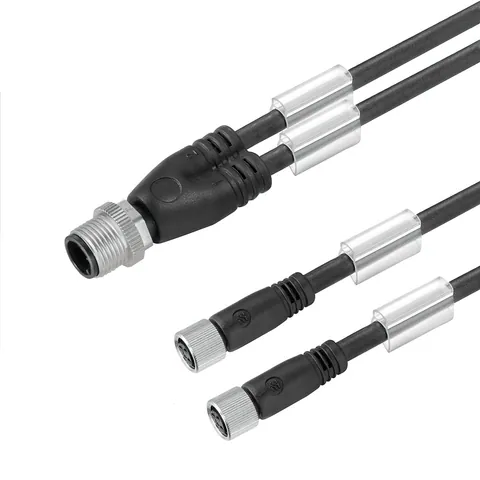

This connection line is designed for sensor and actuator applications, incorporating M12 and M8 connectors with a total of 3 poles. The cable measures 1.5 meters in length and is constructed with twin cabling, featuring straight pins and sockets. The sheath material is made of PUR, ensuring durability under various environmental conditions.
It adheres to IEC 61076-2-101 and IEC 61076-2-104 standards, with a rated voltage of 60 V and a rated current of 4 A. The product is capable of operating in a temperature range from -25 °C to +80 °C. Furthermore, it has an IP65/IP66/IP67/IP68 protection degree when properly connected, making it suitable for demanding environments.
For application versatility, the cable is non-shielded and features a core cross-section of 0.25 mm². The outer diameter is 4.1 ± 0.2 mm, and the cable is designed to withstand bending cycles of up to 2 million. It also demonstrates resistance to oils and has been classified for environmental compliance under standards such as REACH and ROHS.
Need more information?
Offer details
- Offer from:
Trusted supplier — Italy, member since 2021, 10–19 employees - Availability:
- On requestLead time to be confirmed
- Warranty:
- 12 months
- Condition:
- New Factory Sealed
Specifications
- Brand
- Weidmuller
- Approvals
- EAC
- ROHS
- Conform
- Connector standard
- IEC 61076-2-101, IEC 61076-2-104
- AF size
- 12 mm
- Version
- Twin cabling, pin, straight, 2x socket, straight
- Connection thread
- M12 / M8
