Weidmuller 9995010000

The LM 5.08/08/180 3.5SN OR BX terminal block is designed for reliable PCB connections with a pitch of 5.08 mm and accommodates up to 8 poles. The device utilizes a clamping yoke connection, offering a maximum clamping range of 2.5 mm². It is particularly suited for applications requiring a solder pin length of 3.5 mm, ensuring a secure connection.

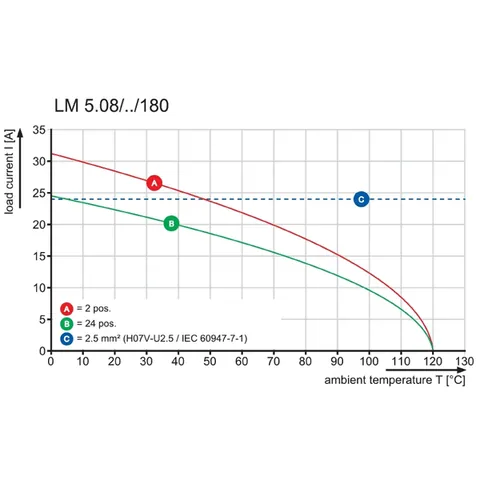

This product complies with various standards, including UL 1059 and IEC standards, rated for a maximum current of 15 A under specific conditions. The operating temperature range extends from -50°C to 120°C, ensuring versatility in various environments. Additionally, the terminal block is constructed from Wemid (PA) insulating material, characterized by its orange color and a Comparative Tracking Index (CTI) of ≥ 600, which enhances its performance in electrical applications.

With dimensions of 41.19 mm in width, 13.5 mm in height, and 14.2 mm in depth, the terminal block is compact and suitable for various PCB layouts. The device's net weight is approximately 9.94 g, making it lightweight for integration into complex systems. This terminal strip is packaged in a box for convenient handling and storage.
