ABB 1SBH137001R1131
NF31E-11 24-60V50/60HZ 20-60VDC Contactor Relay
1 / 1

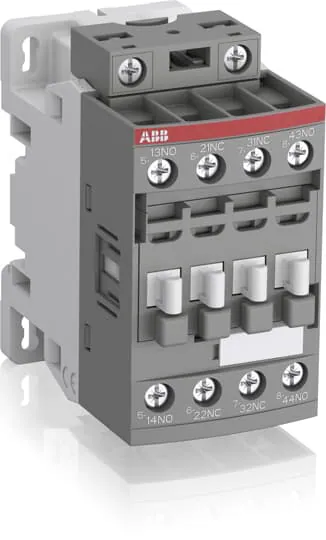

Imagen de catálogo del fabricante
Descripción del producto
Cumple con RoHS
The NF contactor relay is engineered for auxiliary and control circuit switching, featuring an electronic coil interface that accommodates a broad control voltage spectrum. The relay can manage variations in control voltage without requiring coil changes, making it suitable for global applications. Notably, it has built-in surge protection, eliminating the need for external suppressors.
This model includes four poles and complies with IEC standards, featuring three normally open auxiliary contacts and one normally closed auxiliary contact. The device operates on both AC and DC control circuits. It is mounted on standard DIN rails with options for screw fastening. The relay's compact dimensions are 45 mm wide, 77 mm deep, and 86 mm high, weighing 0.27 kg.
With a rated operational voltage of 690 V for the auxiliary circuit and a rated frequency of 50/60 Hz, it supports a variety of operational currents. Its performance includes a maximum electrical switching frequency of 1200 cycles per hour for AC and 900 cycles per hour for DC, ensuring reliable operation in dynamic applications. The NF31E-11 is not suitable for direct control via PLC output and is available in select regions.
Enviar consulta
Métodos de pago:
Detalles de la oferta
- Mejor oferta de:
Proveedor de confianza — Reino Unido, miembro desde 2021- Disponibilidad:
- 2 piezasEn stockActualizado en: 31-10-2025
- Condición:
- Nuevo Precintado de Fábrica
Nuevo Precintado de Fábrica - Un artículo completamente nuevo, sin usar, sin abrir, sin daños, en su embalaje original sellado por el fabricante.
El Vendedor es responsable de enviar el producto y facturar
Especificaciones
- Marca
- ABB
- Number of Auxiliary Contacts NO
- 3
- Number of Auxiliary Contacts NC
- 1
- Standards
- IEC/EN 60947-1, IEC/EN 60947-5-1, UL 508, CSA C22.2 No. 14-13
- Rated Operational Voltage
- Auxiliary Circuit 690 V
- Rated Frequency (f)
- Auxiliary Circuit 50 / 60 HzControl Circuit 50 / 60 Hz
- Conventional Free-air Thermal Current (Ith)
- acc. to IEC 60947-5-1, Θ = 40 °C 16 A
Ofertas Disponibles
(2)Acceda a nuestra plataforma para encontrar más ofertas
Regístrese ahora para explorar 36 millones de ofertas de proveedores verificados de todo el mundo.
- Comparar ofertas globalmente
- Contacto directo con el proveedor
- Peticiones de oferta, presupuestos y pedidos
- Búsqueda de listas de materiales
Registrate14 días de prueba gratuita
Documentos
Hoja de datos
Hoja de datos para ABB 1SBH137001R1131, incluyendo especificaciones y características.
Descargar hoja de datos
TracePartsModelos CAD
Modelo CAD 3D y planos técnicos, listos para tu software de diseño.
Descargar modelo CAD
