Harting
09210072632

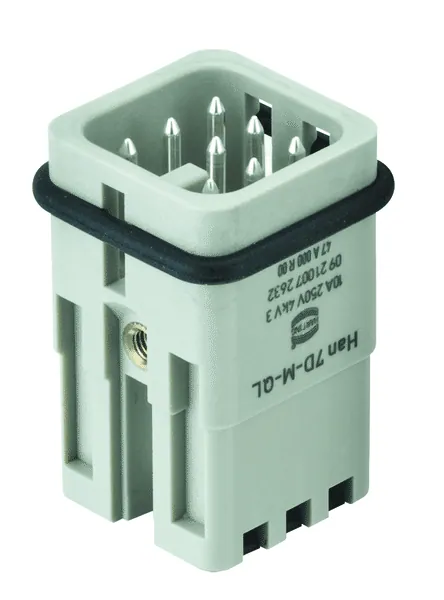

Inserts, Han-Quick Lock® termination, Male, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current: 10 A, Size: 3 A, Contacts: 7
- Consigue plazos de pago de hasta 90 días de 500+ proveedores.
- Descuentos de reventa de hasta el 40%!
€17.64
1
Formas de pago:
Un total de 688 Parts In-Stock de 15 Distributors
Condiciones del producto:
Additional Information
- Part Number
- 09210072632
Technical characteristics
- Conductor cross-section
- 0.25 ... 1.5 mm²
- Rated current
- 10 A
- Rated voltage
- 250 V
- Rated impulse voltage
- 4 kV
- Pollution degree
- 3
- Rated voltage acc. to UL
- 600 V
- Rated voltage acc. to CSA
- 600 V
- Insulation resistance
- >10
- Contact resistance
- ≤ 3 mΩ
- Stripping length
- 10 mm
- Limiting temperature
- -40 ... +125 °C
- Mating cycles
- ≥ 500
Version
- Termination method
- Han-Quick Lock
- Gender
- Male
- Size
- 3 A
- Number of contacts
- 7
- PE contact
- Yes
- Details
- Only for thermoplastic hoods / housings
Commercial data
- Packaging size
- 10
- Net weight
- 16.28 g
- Country of origin
- Germany
- European customs tariff number
- 85366990
- ECl@ss
- 27440205 Contact insert for industrial connectors
Specifications and approvals
- Specifications
- EN 60664-1 || IEC 61984 || EN 175301-801
- Approvals
- DNV GL
- UL / CSA
- UL 1977 ECBT2.E235076 || CSA-C22.2 No. 182.3 ECBT8.E235076
Material properties
- Material (insert)
- Polycarbonate (PC)
- Colour (insert)
- RAL 7032 (pebble grey)
- Material (contacts)
- Copper alloy
- Surface (contacts)
- Silver plated
- Material (seal)
- NBR
- Material flammability class acc. to UL 94
- V-0
- RoHS
- compliant with exemption
- ELV status
- compliant with exemption
- China RoHS
- 50
- REACH Annex XVII substances
- No
- REACH ANNEX XIV substances
- No
- REACH SVHC substances
- Lead
Identification
- Category
- Inserts
- Series
- Han D
