IFM AL1590

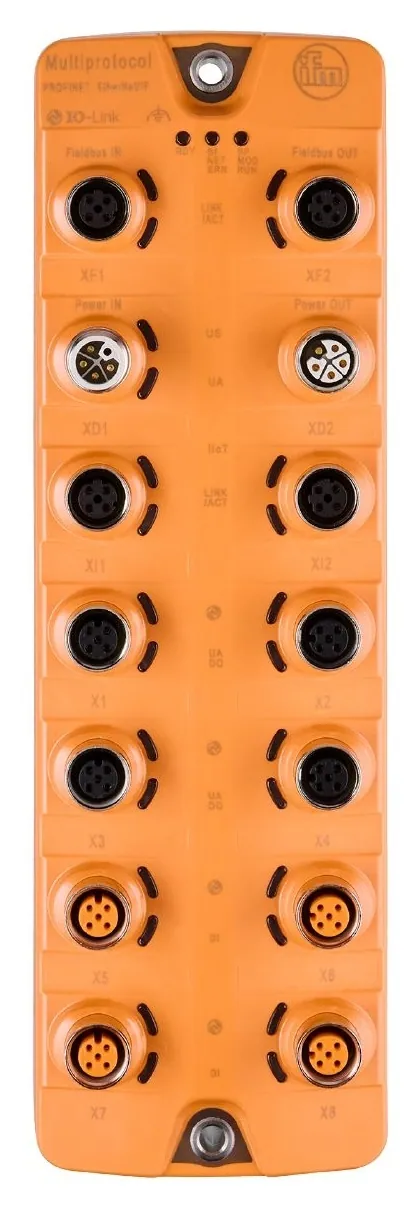

The IO-Link Master SOL MP 8P IP67 is designed for the connection of up to eight IO-Link devices, facilitating direct data transfer to on-premises IT systems using the OPC UA protocol. Its multiprotocol fieldbus capability supports both PROFINET and EtherNet/IP, offering flexibility for various controller configurations.

Equipped with an integrated Node-RED environment, the master allows for efficient programming and parameter adjustment. The device operates within a voltage range of 20 to 30 V DC and has a current consumption that varies from 300 to 3900 mA, with a maximum current load of 3.6 A. It features a total of 16 configurable inputs and outputs, including 12 digital inputs and 12 digital outputs, ensuring versatile application in I/O modules for field use.

Operating across a temperature range from -25 to 60 °C, the IO-Link Master maintains a high level of durability with an IP67 protection rating and is capable of withstanding various environmental conditions. The housing is constructed from PA orange material, and the connectors are designed for secure Ethernet and IO-Link communication, meeting industry standards.

For further technical specifications and operational details, please refer to the operating instructions.
