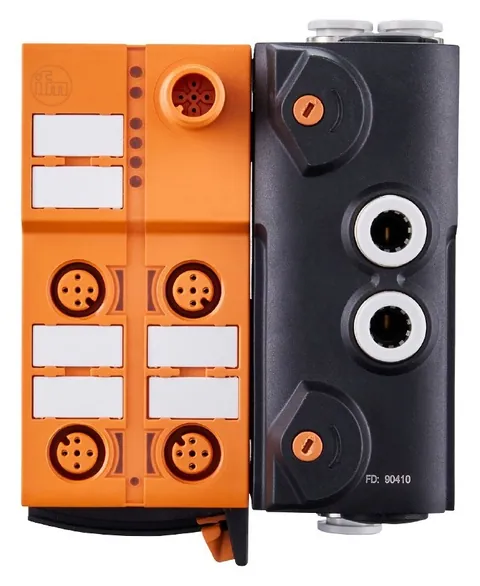

IFM AL5251

The IO-Link AirBox is designed for decentralized control of cylinders and valve actuators, optimizing energy efficiency through proximity to the actuator. With its quick mounting technology, installation and wiring are simplified, allowing for tool-free setup.

Featuring a combination of an IO-Link device and a solenoid valve, the AirBox supports 8 digital inputs and 2 pneumatic outputs. It operates within a medium temperature range of -10 to 50 °C and is suitable for wet environments, utilizing compressed air as the operating medium. The device's electrical specifications include an operating voltage of 18 to 30 V DC, with a current consumption ranging from 80 to 680 mA under full load conditions.

In terms of communication, it employs the IO-Link interface with a transmission speed of 38.4 kBaud, compliant with IEC 61131-9 standards. The AirBox maintains compatibility with a range of device IDs while ensuring fast process cycle times of 2.7 ms minimum.

Constructed for durability, the housing is made from PA 6.6, while the pneumatic system features a bistable 1 x 5/2-way slide valve. The device is rated with an IP 65 and IP 67 protection degree, making it suitable for demanding environments. The AirBox's dimensions are 109 x 85 x 52 mm, and it weighs 136.5 g, designed for mounting on a DIN rail. The designation code for this model is IOL AirBox 1x5/2 bist. 4x2DI.
