O-Z Gedney N7101208

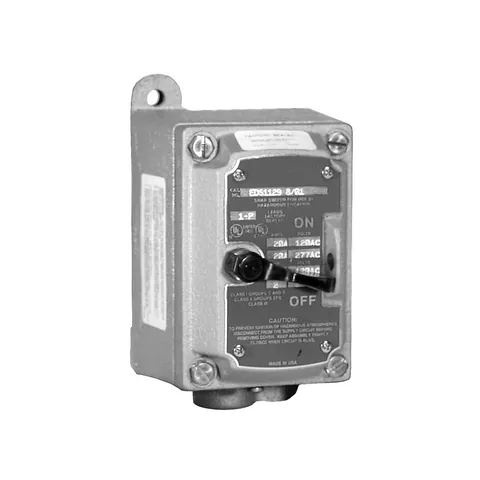

Optitrol Series Factory Sealed Front Operated Tumbler Switches - PN
Descripción del producto
The Optitrol Series factory sealed front operated tumbler switches provide reliable performance in environments prone to ignition hazards. They are specifically engineered for use in classified locations where flammable vapors, gases, or combustible dust may be present, such as in chemical and petrochemical facilities, refineries, and process industries.
Constructed with a malleable iron body and cover, these switches feature a nylon 6/6 handle, ensuring durability. An optional corrosion-resistant stainless steel nameplate mounting bracket is available, facilitating easy identification without the need for additional drilling or tapping. The switches are finished with a triple-coat process, incorporating zinc electroplate, chromate, and epoxy powder coat for enhanced protection.
These switches are compliant with NEC and CEC standards, certified for Class I, Division 1 and 2, Groups B, C, D; Class II, Division 1 and 2, Groups E, F, G; and Class III, with a NEMA rating of 3, 7CD, 9EFG, ensuring their suitability for various industrial applications.
¿Necesita más información?
- Consigue plazos de pago de hasta 90 días de 500+ proveedores.
- Descuentos de reventa de hasta el 40%!
Especificaciones
- Marca
- O-Z Gedney
- Standard Materials
- Malleable iron body and covers. Nylon 6/6 handle. Corrosion resistant stainless steel nameplate mounting bracket (optional)
- Standard Finishes
- Tumbler switches have a triple-coat finish (1) zinc electroplate, (2) chromate, and (3) epoxy powder coat
- Option Materials
- 1- or 2-gang copperfree (4/10 of 1% max.) aluminum bodies and covers available. See catalog pages for details
- Nameplate Mounting Bracket
- Make circuit description/identification easy and eliminate costly field installation (drilling/tapping) to accommodate circuit identification nameplates by using our bracket accessory. See catalog.
- NEC and CEC Certifications and Compliances
- Class I, Division 1, Groups C, D; Class I, Division 2, Group B, C, D; Class II, Division 1 and 2, Groups E, F, G; Class III; NEMA 3, 7CD, 9EFG
