Phoenix Contact 1046961

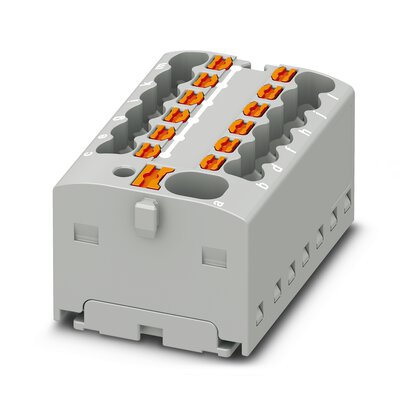

The PTFIX 4/12X1,5 GY is a distribution block designed for efficient electrical connections. It supports a nominal current of 41 A and utilizes a push-in connection method, accommodating a rated cross section of 4 mm². The cross section range varies from 0.2 mm² to 6 mm², making it versatile for various applications. Additionally, it allows for load connections with a cross section of 0.14 mm² to 2.5 mm².

This terminal block is engineered for mounting onto a DIN rail adapter, with options for direct mounting via a flange or free-hanging installation. The unit is constructed from gray insulating material, compliant with various safety standards, including IEC 60998-2-2.

With a comprehensive operational temperature range of -60 °C to 110 °C and a maximum total current of 41 A, the device is suitable for diverse environments. It also meets stringent fire protection requirements for rail vehicles as specified in DIN EN 45545-2, ensuring enhanced safety. The design includes 13 connections per level and a compact size with dimensions of 31.4 mm in width, 21.6 mm in height, and 17.7 mm in depth, making it an efficient choice for space-constrained installations.
