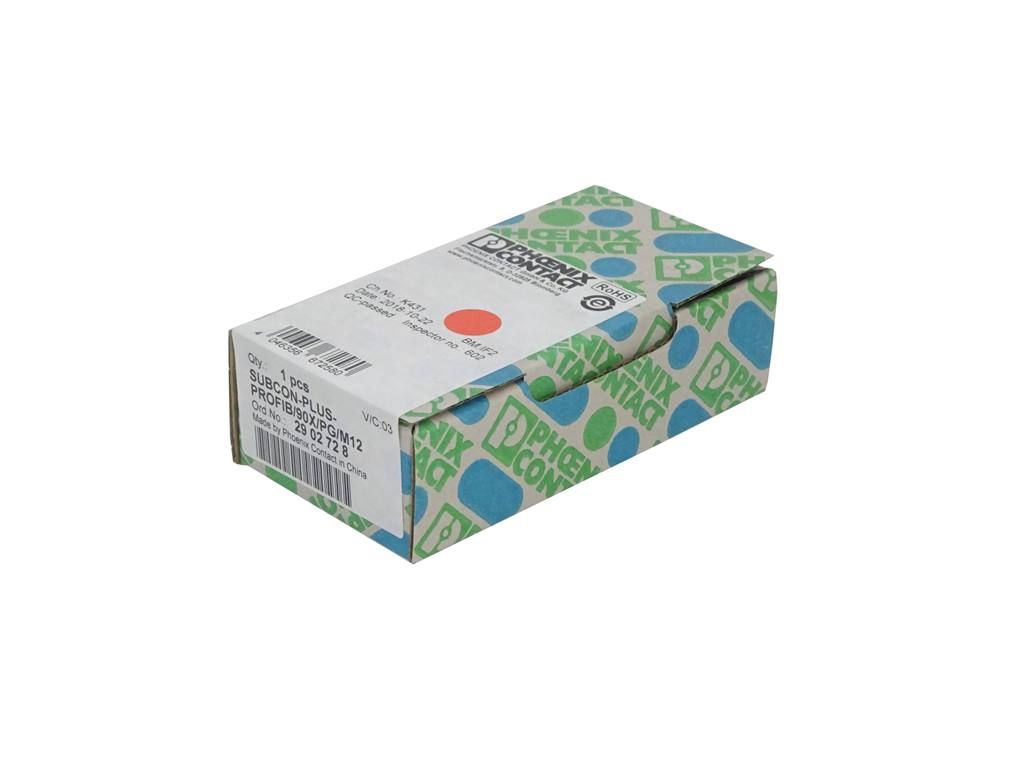

Phoenix Contact 2902728

The D-SUB bus connector is designed with a 9-position pin and PG-D-SUB socket, featuring pin assignments of 3, 5, 6, and 8. It is equipped with two 90° cable entries utilizing M12 (B-coded) connectors. This connector facilitates a bus system based on PROFIBUS DP, allowing data transmission rates of up to 12 Mbps. A termination resistor is incorporated via a separate M12 terminator, ensuring reliable communication.

Notable specifications include a nominal voltage of 5 V and a nominal current of 100 mA. With dimensions measuring 93 mm in length, 16 mm in width, and 41 mm in height, the connector is constructed from durable polyamide material. It is rated with a degree of protection at IP40, making it suitable for various industrial environments.

According to the Designation Code SUBCON-PLUS-PROFIB/90X/PG/M12, this long version is compatible with S7 systems and is engineered for operation in ambient temperatures ranging from -30 °C to 80 °C. The connector demonstrates vibration resistance per EN 60068-2-6 and shock resistance as per EN 60068-2-27, making it reliable under operational stresses.
