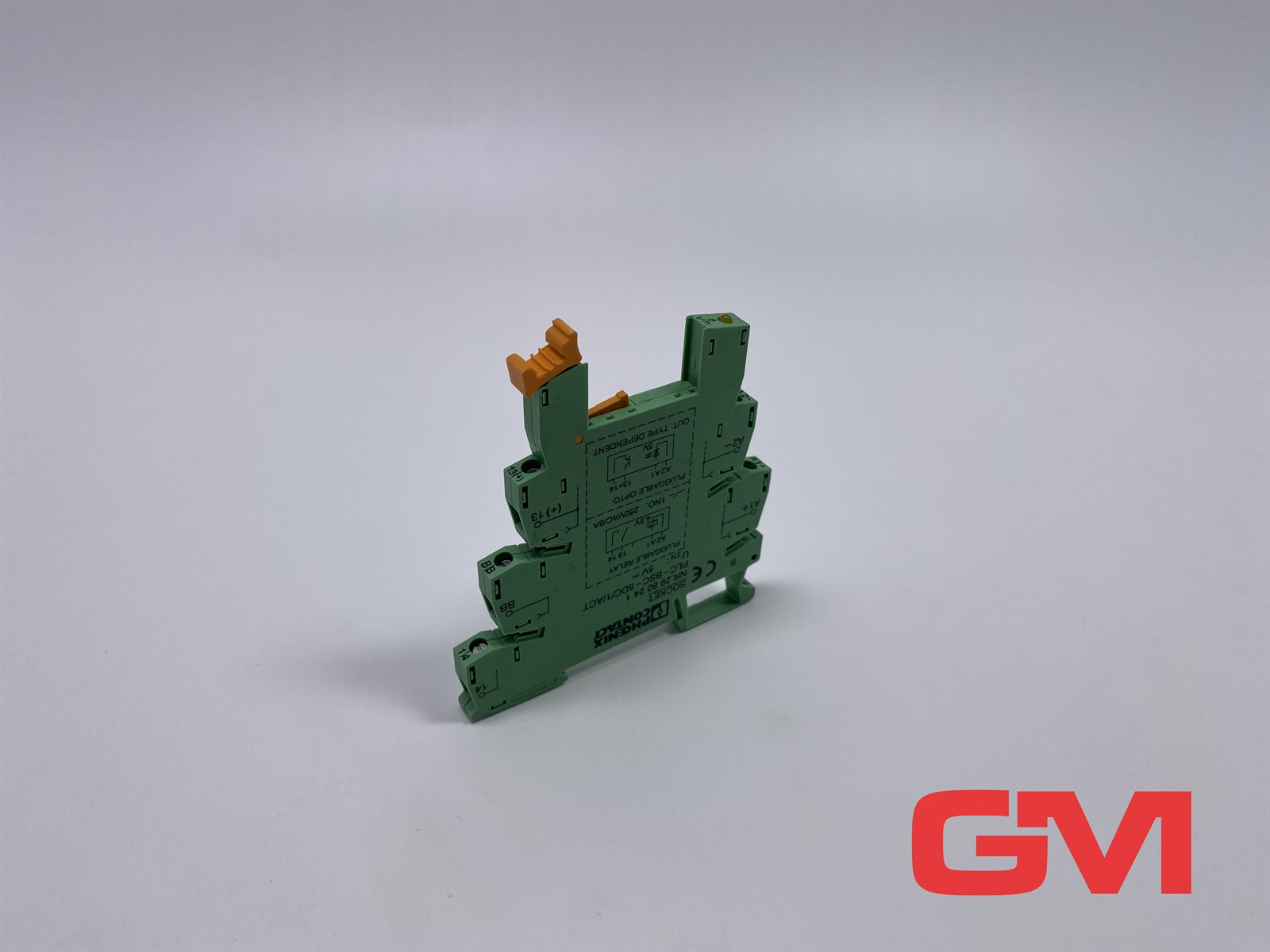

Phoenix Contact 2980241

The PLC-BSC- 5DC/ 1/ACT is a compact 6.2 mm wide terminal block specifically designed for output functions, featuring a screw connection and intended for installation on a DIN rail NS 35/7.5. Its design includes a load return line connection (BB) and one normally open contact, making it suitable for various applications requiring a 5 V DC input voltage.

This unit operates efficiently within a temperature range of -25 °C to 60 °C, and can be stored or transported in conditions between -40 °C and 85 °C. The terminal block maintains a high operational standard with a pollution degree rating of 3 and includes a protective circuit with a freewheeling diode. It supports a conductor cross-section from 0.14 mm² to 2.5 mm² for both rigid and flexible conductors, accommodating AWG sizes from 26 to 14.

Installation is straightforward, with a stripping length of 8 mm and a screw thread of M3. The tightening torque required for secure connections ranges from 0.6 Nm to 0.8 Nm. An LED status display enhances operational visibility. The terminal block is constructed from gray housing (RAL 7042) that meets the flammability rating V0 according to UL 94, ensuring compliance with relevant safety standards.

Designed for versatility, this terminal block can be mounted in any position and is capable of assembly in rows with zero spacing. For use in harsh environments, it adheres to the ISA-S71.04 G3 classification, with ratings for temperature, humidity, vibration, and EMC compliance.
