Phoenix Contact 3002865
12X1,5-G BU - Distribution block
1 / 2

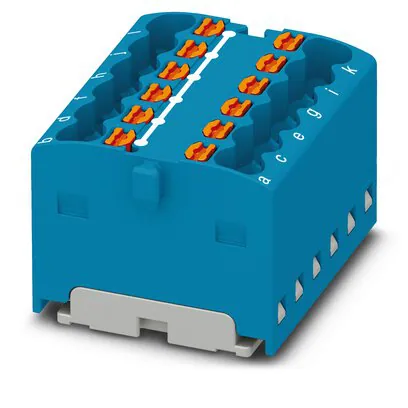

Imagen de catálogo del fabricante
Descripción del producto
The 12X1,5-G BU distribution block is designed for efficient connectivity and can be interconnected via the conductor shaft, allowing for flexible configurations with corresponding plug-in bridges available as accessories. It operates at a nominal voltage of 450 V and supports a nominal current of 17.5 A, with a maximum load current of 22 A and total current capacity of 26 A.
Utilizing a push-in connection method, this block accommodates conductor cross sections between 0.14 mm² and 2.5 mm², facilitating a variety of installation scenarios. The mounting type is adhesive, and the unit is colored blue (RAL 5015), ensuring visibility in applications.
With dimensions of 24.9 mm in width, 21.6 mm in height, and 18.7 mm in depth, this distribution block is compact and easy to integrate. The ambient operating temperature range is between -35 °C and 110 °C, while storage and transport conditions can vary from -25 °C to 60 °C, ensuring reliability across diverse environments. The insulation material is PA, rated for flammability according to UL 94 as V0, and meets various fire protection standards, making it suitable for rail vehicles as well.
PTFIX 12X1,5-G BU
Enviar consulta
Métodos de pago:
Detalles de la oferta
- Mejor oferta de:
Proveedor de confianza — Italia, miembro desde 2021, 10–19 empleados- Disponibilidad:
- 0 piezasBajo pedidoActualizado en: 27-08-2026
- Garantía:
- 12 meses
- Condición:
- Nuevo Precintado de Fábrica
Nuevo Precintado de Fábrica - Un artículo completamente nuevo, sin usar, sin abrir, sin daños, en su embalaje original sellado por el fabricante.
El Vendedor es responsable de enviar el producto y facturar
Especificaciones
- Marca
- Phoenix Contact
- Nominal Current
- 17.5 A
- Connection Method
- Push-in connection
- Cross Section
- 0.14 mm² - 2.5 mm²
- Mounting Type
- Adhesive
- Color
- Blue
- Item number
- 3002865
