Schneider Electric
8501KPR12V24
1 / 5
Descripción
Activo maduro

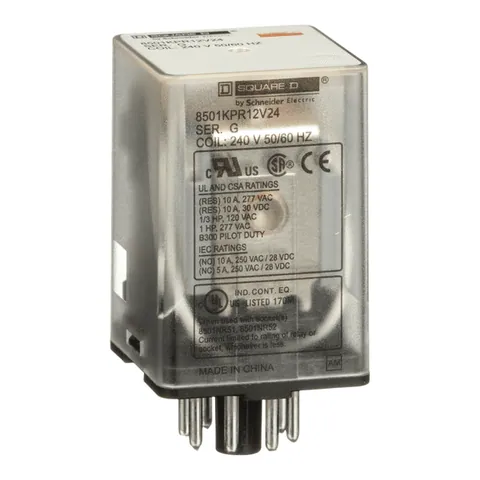

8501KP universal plug in relays are designed for multipole switching applications at 300 VAC or lower. These relays are designed to be plugged into a relay socket. This makes for very easy replacement. This relay plugs into an 851NR51 or 8501NR52 relay socket. This relay has a DPDT contact arrangements. It has two normally open and two normally closed contacts. The contacts have a 10 ampere rating 277 VAC, a 10 ampere rating at 28 VDC, a 1/3 HP rating at 120 VAC, a 1 HP rating at 277 VAC and a B300 inductive rating. Relays can be ordered with a wide variety of coil voltages. This relay has a 240 VAC nonreplaceable coil. A green LED indicator is not supplied on this relay. 8501KP relays are UL listed with Square D relay sockets, UL component recognized and CSA certified.- Country of Origin
- CN
- Part Number
- 8501KPR12V24
- Tariff Code
- 8536490075
- EAN
- 39122335
- UPC
- 785901334187
- UNSPSC
- 39122335
- Consigue plazos de pago de hasta 90 días de 500+ proveedores.
- Descuentos de reventa de hasta el 40%!
Enviar solicitud de precio
1
Formas de pago:
Offer Sustainability
- China Rohs Regulation
- X
- Circularity Profile
- N/A
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1406038EN
- Sustainable Offer Status
- Green Premium product
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Reach Free Of Svhc
- Yes
Complementary
- Contacts Material
- silver alloy (AgNi)
- Rated Power In Hp
- 1 hp 277 V AC
- Shape Of Pin
- tubular
- Operating Time
- 20 ms - pick-up || 20 ms - drop-out
- Product Compatibility
- 8501NR52 || 8501NR51
- Maximum Switching Voltage
- 300 V AC || 30 V DC
Specifications
- [Uc] Control Circuit Voltage
- 240 V AC
- Relay Type
- general purpose
- Range Of Product
- 8501K
- Mounting Support
- socket
- Switch Function
- DPDT
- Product Or Component Type
- relay
- Control Type
- without test button
Environment
- Product Certifications
- UL Listed || UL Recognized || CSA || CE
- Height
- 2.66 in
- Ambient Air Temperature For Operation
- -40-131 °F
- Width
- 1.4 in
- Depth
- 1.4 in
