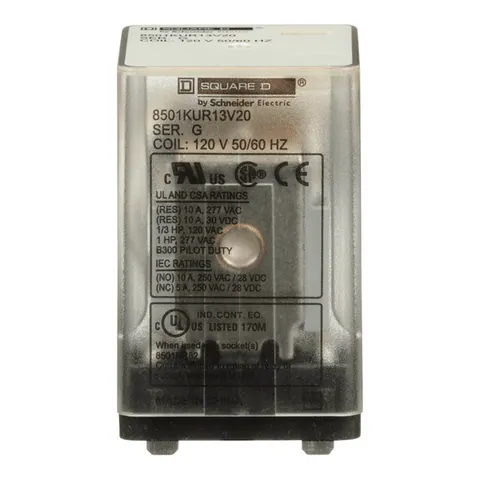

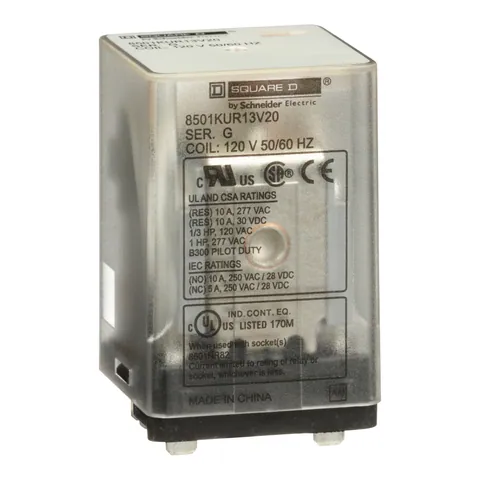

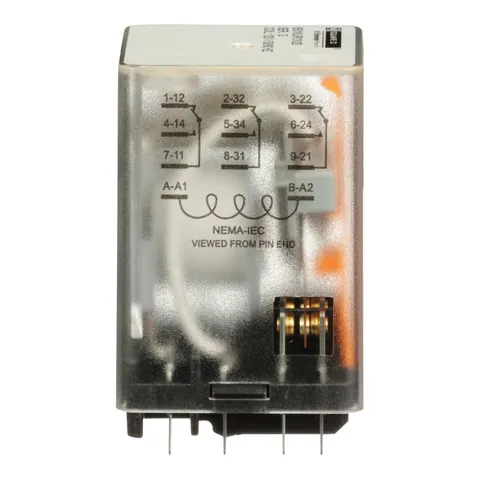

8501KUR13V20

Additional Information

Part Number

8501KUR13V20

UPC

785901978831

UNSPSC

39122325

Tariff Code

8536490075

Country of Origin

CN

Specifications

[Uc] Control Circuit Voltage

120 V AC

Local Signalling

no indicator

Relay Type

general purpose

Range Of Product

8501K

Mounting Support

socket

Switch Function

3PDT

Product Or Component Type

relay

Complementary

Contacts Material

silver alloy (AgNi)

Rated Power In Hp

1 hp 277 V AC || 0.33 hp 120 V AC

Shape Of Pin

spade

Rated Breaking Capacity

3 A 120 V AC inductive control circuit UL 508 || 1.5 A 240 V AC inductive control circuit UL 508 || 10 A 277 V AC resistive control circuit UL 508 || 10 A 30 V DC resistive control circuit UL 508

Operating Time

20 ms - pick-up || 20 ms - drop-out

Product Compatibility

8501NR82

Maximum Switching Voltage

300 V AC || 30 V DC

Offer Sustainability

China Rohs Regulation

X

Circularity Profile

N/A

Rohs Exemption Information

Yes

Environmental Disclosure

ENVPEP1406038EN

Sustainable Offer Status

Green Premium product

Eu Rohs Directive

Pro-active compliance (Product out of EU RoHS legal scope)

Reach Regulation

Free of Substances of Very High Concern above the threshold

California Proposition 65

WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Reach Free Of Svhc

Yes

Environment

Product Certifications

UL Listed || UL Recognized || CSA || CE

Height

2.25 in

Ambient Air Temperature For Operation

-40-131 °F

Width

1.37 in

Depth

1.4 in
