Schneider Electric
8910DPA42V14
1 / 5
Descripción
Activo maduro

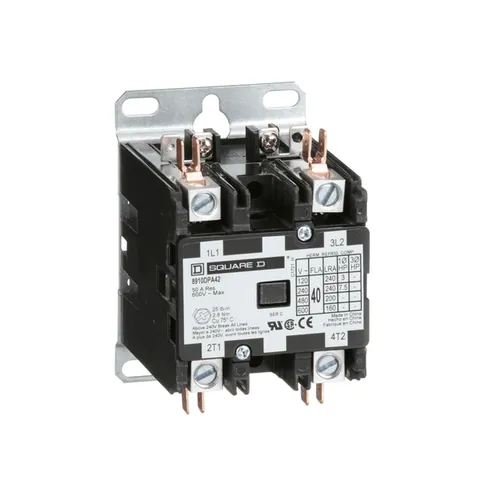

8910DP definite purpose magnetic contactors are designed for heating, air conditioning and refrigeration applications. This line of definite purpose contactors has current ratings up to 120 amperes resistive and 50 HP at 600 VAC. This two pole definite purpose contactor has a full load rating of 40 ampere and a resistive rating of 50 amperes. It also has a 3 HP at 115 VAC single phase, 7.5 HP at 230 VAC single phase and 10 HP at 230 VAC three phase, 20 HP at 460 VAC three phase and 25 HP at 575 VAC three phase. The nonreplaceable coil is available with a variety of coil voltages. This device has a 24 VAC 50/60 Hz coil. The contactor has straight through wiring. Contactor is 3.75 inches by 2.37 inches and 3.00 tall. These contactors are UL component recognized and CSA certified.- Country of Origin
- CN
- Part Number
- 8910DPA42V14
- Tariff Code
- 8536490065
- EAN
- 39121529
- UPC
- 785901073482
- UNSPSC
- 39121529
- Consigue plazos de pago de hasta 90 días de 500+ proveedores.
- Descuentos de reventa de hasta el 40%!
Enviar solicitud de precio
1
Formas de pago:
Environment
- Product Certifications
- UL Recognized || CSA
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Eu Rohs Directive
- Compliant with Exemptions
Complementary
- [Uc] Control Circuit Voltage
- 24 V AC 50/60 Hz
- Locked Rotor Rated Current
- 240 A 277 V AC || 200 A 460 V AC || 160 A 575 V AC
- Maximum Horse Power Rating
- 3-3 hp 115 V AC, 1 phase || 7.5-7.5 hp 230 V AC, 1 phase
- Phase
- 1 phase
- Electrical Connection
- quick connect terminals || box lugs
- [Ue] Rated Operational Voltage
- 600 V AC
Specifications
- Range Of Product
- DPA
- Product Or Component Type
- Definite Purpose Contactor
- Pole Contact Composition
- 2 NO
- Poles Description
- 2P
- Line Rated Current
- 40 A
