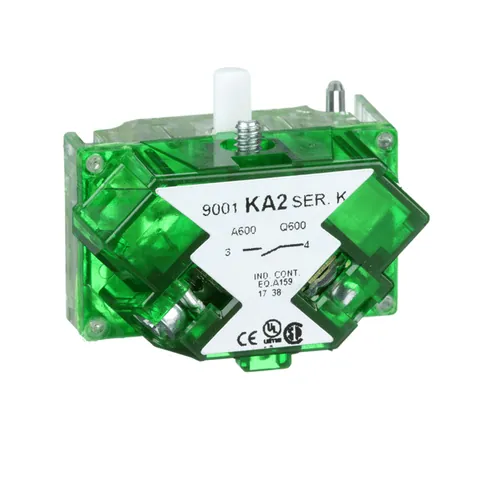

9001KA2

Environment

Product Certifications

UL 508 || NEMA

Ambient Air Temperature For Operation

-25-70 °C

Standards

IEC 60947-5-4 || JIS C 852 || IEC 60947-5-1 || JIS C 4520 || CSA C22.2 No 14 || UL 508 || IEC 60947-1 || UL 60947-5-1

Shock Resistance

50 gn IEC 60068-2-27

Vibration Resistance

7 gn 2-500 Hz)IEC 60068-2-6

Ip Degree Of Protection

IP20 IEC 60529

Ambient Air Temperature For Storage

-40-70 °C

Electrical Shock Protection Class

class II IEC 61140

Protective Treatment

TC

Contractual warranty

Warranty

18 months

Offer Sustainability

Rohs Exemption Information

Yes

Mercury Free

Yes

Environmental Disclosure

ENVPEP121006EN

Sustainable Offer Status

Green Premium product

Reach Regulation

Reference contains Substances of Very High Concern above the threshold

California Proposition 65

WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

China Rohs Regulation

X

Circularity Profile

N/A

Eu Rohs Directive

Pro-active compliance (Product out of EU RoHS legal scope)

Complementary

[Us] Rated Supply Voltage

0...600 V

Connections - Terminals

screw-clamp terminals

Terminals Description Iso N°1

(1-2)NC

Short-Circuit Protection

10 A cartridge fuse IEC 60947-5-1

Contacts Material

silver alloy contacts

Positive Opening

without

[Ith] Conventional Free Air Thermal Current

10 A

Rated Breaking Capacity

3 kA 240 V AC-15, 720 VA || 6 kA 120 V AC-15, 720 VA || 1.2 kA 600 V AC-15, 720 VA || 1.5 kA 480 V AC-15, 720 VA || 0.1 kA 600 V DC-13 || 0.27 kA 250 V DC-13 || 0.55 kA 125 V DC-13

Net Weight

0.023 kg

[Uimp] Rated Impulse Withstand Voltage

2.5 kV IEC 60947-1

Connections - Terminals

screw clamp terminals, 1 x 0.22...2 x 2.5 mm² IEC 60947-1

[Icm] Rated Short-Circuit Making Capacity

12 kA 600 V AC-15, 7200 VA || 15 kA 480 V AC-15, 7200 VA || 30 kA 240 V AC-15, 7200 VA || 60 kA 120 V AC-15, 7200 VA || 0.27 kA 250 V DC-13, 7200 VA || 0.55 kA 125 V DC-13, 7200 VA || 0.1 kA 600 V DC-13

Contacts Type And Composition

1 NO

[Ui] Rated Insulation Voltage

250 V 3)IEC 60947-1

[Ie] Rated Operational Current

3 A 240 V, AC-15, A600-Q600 NEMA || 0.55 A 125 V, DC-13, A600-Q600 NEMA

Contact Operation

standard

Tightening Torque

0.8-0.8 N.m IEC 60947-1

Shape Of Screw Head

cross slotted

Specifications

Range Of Product

Harmony 9001K || Harmony 9001SK

Product Or Component Type

contact block

Device Short Name

9001K
