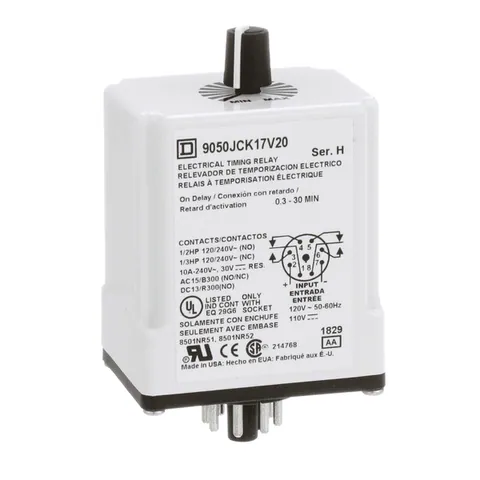

9050JCK17V20

Additional Information

Part Number

9050JCK17V20

UPC

785901032601

UNSPSC

39122329

Tariff Code

8536490080

Country of Origin

US

Environment

Product Certifications

UL Listed || UL Recognized || CE

Ambient Air Temperature For Operation

-18-150 °F

Height

61 mm

Width

43 mm

Depth

104 mm

Contractual warranty

Warranty

18 months

Offer Sustainability

China Rohs Regulation

X

Circularity Profile

ENVEOLI1406037EN

Rohs Exemption Information

Yes

Mercury Free

Yes

Environmental Disclosure

ENVPEP1406037EN

Sustainable Offer Status

Green Premium product

Toxic Heavy Metal Free

Yes

Eu Rohs Directive

Pro-active compliance (Product out of EU RoHS legal scope)

Reach Regulation

Free of Substances of Very High Concern above the threshold

Reach Free Of Svhc

Yes

Complementary

Contacts Type And Composition

2 NO + 2 NC

Mounting Support

socket

Contacts Material

silver nickel

Hold-In Power Consumption In Va

2-2 VA

Shape Of Pin

tubular

Line Rated Current

10 A

Switch Function

DPDT

Product Compatibility

8501NR51 || 8501NR52

Pin Number

8

Maximum Switching Voltage

240 V AC

Specifications

[Uc] Control Circuit Voltage

120 V AC || 110 V DC

Time Delay Range

0.3...30 min

Range Of Product

9050JCK

Product Or Component Type

timer

Time Delay Type

on-delay
