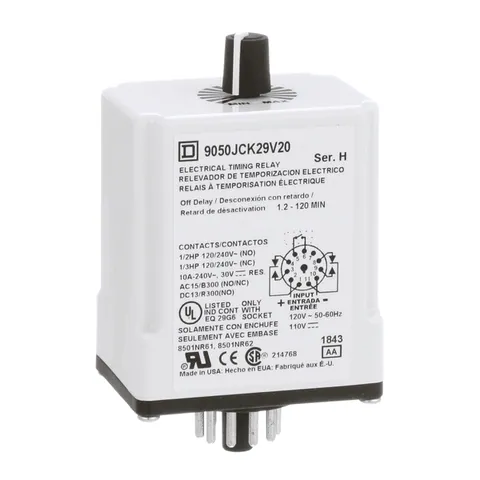

9050JCK29V20

Additional Information

Part Number

9050JCK29V20

UPC

785901056614

UNSPSC

39122329

Tariff Code

8536490080

Country of Origin

US

Environment

Product Certifications

UL Recognized || CE || UL Listed

Ambient Air Temperature For Operation

-18-150 °F

Height

61 mm

Width

43 mm

Depth

104 mm

Contractual warranty

Warranty

18 months

Offer Sustainability

Rohs Exemption Information

Yes

Mercury Free

Yes

Environmental Disclosure

ENVPEP1406037EN

Sustainable Offer Status

Green Premium product

Toxic Heavy Metal Free

Yes

Reach Regulation

Free of Substances of Very High Concern above the threshold

Reach Free Of Svhc

Yes

China Rohs Regulation

X

Circularity Profile

ENVEOLI1406037EN

Eu Rohs Directive

Pro-active compliance (Product out of EU RoHS legal scope)

Complementary

Mounting Support

socket

Contacts Material

silver nickel

Hold-In Power Consumption In Va

2-2 VA

Shape Of Pin

tubular

Maximum Switching Voltage

240 V AC

Contacts Type And Composition

2 NO + 2 NC

Line Rated Current

10 A

Switch Function

DPDT

Product Compatibility

8501NR62 || 8501NR61

Pin Number

11

Specifications

[Uc] Control Circuit Voltage

120 V AC || 110 V DC

Range Of Product

9050JCK

Product Or Component Type

timer

Time Delay Range

1.2...120 min

Time Delay Type

off-delay
