Schneider Electric
9070T3000D1
- Condición:
- Nuevos excedentes
- Disponible:
- 12 piezasEn stockActualizado en: 09-11-2024
- Oferta de:
Proveedor de confianza de Automa.Net- Entrega Estimada:
- Bajo pedido
1
Schneider Electric
9070T3000D1
1 / 5
Descripción
Activo maduro

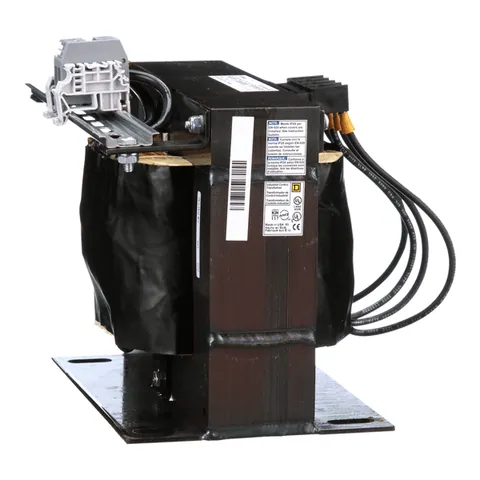

Type T is our most popular and complete line of control transformers. They come with unmatched design innovations for top performance and is manufactured using the most advanced insulating materials. The Type T control transformer is the best choice if size and cost are of concern. Schneider Electric offers transformers with internally pre-wired 24-inch primary and secondary leads, instead of terminal boards, to make installation easier and faster for many applications. These are only available for single voltage primary and single voltage secondary applications. Schneider Electric offers Type T and Type EO transformers in the MultiTap version. This Industrial Control Transformer has a power rating of 3000VA and is 1 phase. This transformer has a 220 x 440V primary voltage and 110V secondary voltage. This transformer complies to UL, CE & CSA standards. Dimensions for this product are 8.75 in (H), 9 in (W), 7.24 in (D). This transformer has screw clamp terminals connections. The material used for this product is copper used in the winding. This product has a compatability for FSC2. This product comes with an 18 month warranty.- Country of Origin
- US
- Part Number
- 9070T3000D1
- Tariff Code
- 8504320000
- EAN
- 39121002
- UPC
- 785901876083
- UNSPSC
- 39121026
Métodos de pago:
- Mejor oferta de:
Proveedor de confianza de Automa.Net- Disponibilidad:
- 1 piezaEn stockActualizado en: 08-11-2024
- Garantía:
- 12 meses
- Entrega Estimada:
- Bajo pedido
- Condición:
- Nuevos excedentes
Nuevos excedentes - Un artículo nuevo, sin usar, sin daños y sin garantía del fabricante. El artículo puede venir sin embalaje original o en embalaje de reemplazo. Si se proporciona, es posible que la caja haya sido abierta.
Un total de 13 Parts In-Stock de 2 Distributors
Proceso de Pago Seguro
Políticas de Devolución y Reembolso
Políticas de Envío
Políticas de Garantía
Ofertas Disponibles (1)
Oferta con plazo de entrega del fabricante
Entrega:Bajo pedido
El mejor precio:
Enviar solicitud de precio
Environment
- Product Certifications
- CSA file LR37055 guide 184-N-90 || UL listed file E61239
- Nema Degree Of Protection
- not rated (open device)
- Insulation Temperature
- 180 °C
Contractual warranty
- Warranty
- 10 Years
Offer Sustainability
- Rohs Exemption Information
- Yes
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP1308008EN
- Sustainable Offer Status
- Green Premium product
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Phenyl glycidyl ether, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Circularity Profile
- N/A
- Eu Rohs Directive
- Compliant with Exemptions
Complementary
- Height
- 8.75 in
- Temperature Rise
- 115 °C
- Phase
- 1 phase
- Material
- copper: winding
- Electrical Connection
- screw clamp terminals
- Width
- 9 in
- Depth
- 7.24 in
- Product Compatibility
- FSC2
- Primary Voltage
- 240 x 480 V 120 V || 230 x 460 V 115 V || 220 x 440 V 110 V
Specifications
- Range Of Product
- T
- Product Or Component Type
- Industrial Control Transformer
- Rated Power In Va
- 3000 VA UL || 3000 VA CSA || 3000 VA NOM || 2000 VA CE
Documentos
Data Sheet
