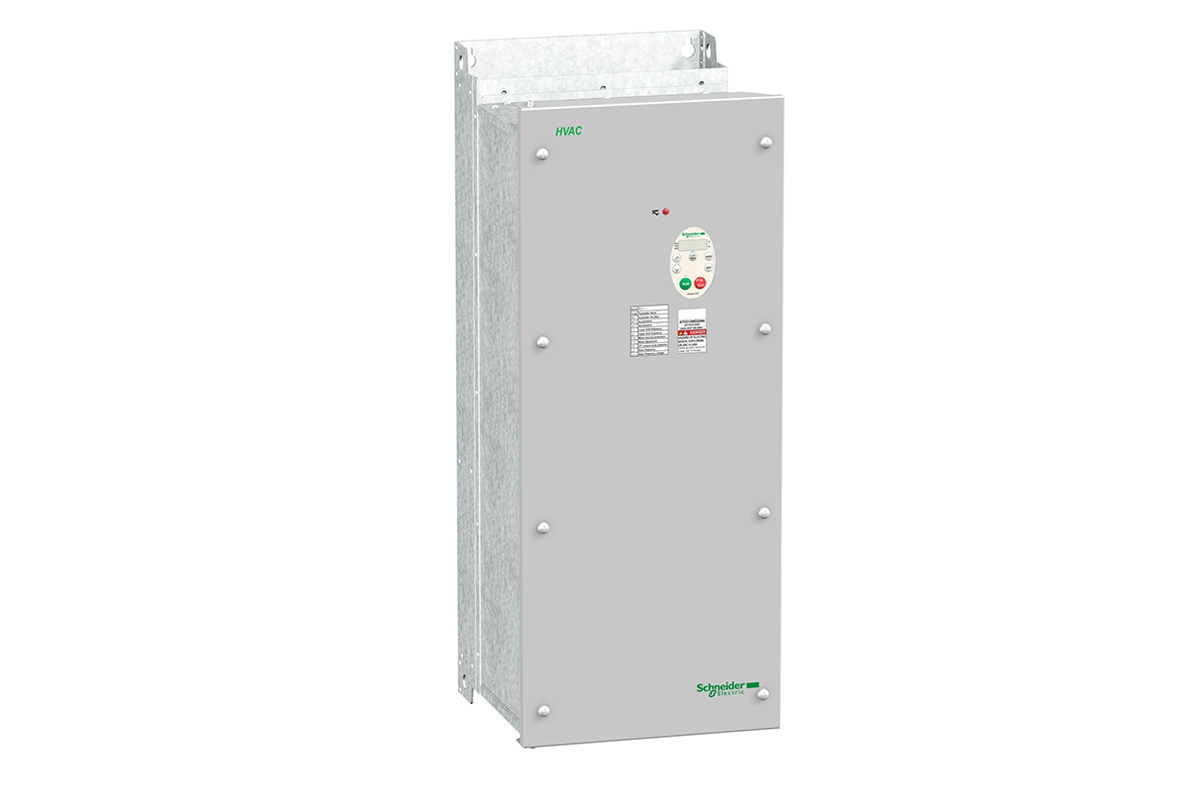

Schneider Electric ATV212WD30N4C

This variable speed drive is engineered for controlling 3-phase asynchronous motors, making it suitable for various applications including pumps and fans in HVAC systems. Operating at a rated power of up to 30 kW and a maximum output of 40 hp, it operates efficiently within a voltage range of 380V to 480V AC, adhering to EMC class C1 standards.

With an IP55 rating, the drive is protected against dust and water ingress, allowing for reliable operation in challenging environments. The integrated EMC filter minimizes electrical noise, ensuring compliance with international standards such as IEC/EN 61800-5-1 and IEC/EN 61800-3.

Weighing 58.5 kg and measuring 284 mm in width, 720 mm in height, and 315 mm in depth, this drive is designed for vertical mounting with a +/- 10° adjustment capability. Notably, it incorporates eco-energy design principles that can reduce energy consumption by up to 70% compared to traditional control systems.

The ATV212 drive supports multiple communication protocols including Modbus, BACnet, and LonWorks, facilitating integration into various building management systems. Furthermore, it features automatic motor slip compensation and adjustable acceleration and deceleration ramps, enhancing operational flexibility for fluid management applications.
