Schneider Electric
BCPMC142S
1 / 1
Descripción
Activo maduro

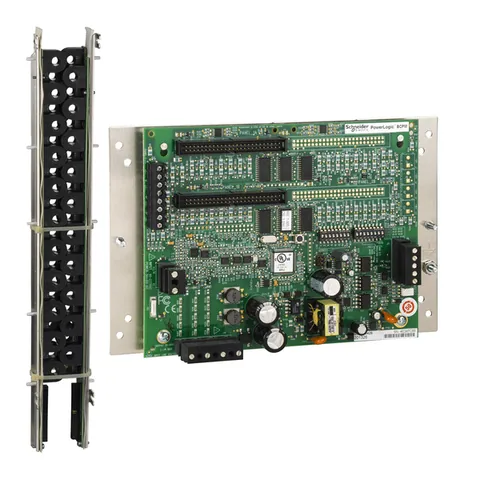

This is an integrated solution for monitoring multi-circuits and mains by using a single meter. The meter is designed for use in new build and is used for critical power operations in data centres and energy management in buildings. It offers class 1 (1 %) power and energy system accuracy (100A solid core current transformers) on all branch channels. The BCPM monitors only the 42 branch circuits current. All to provide information on the complete Power Distribution Unit. Full alarming capabilities ensure that potential issues are dealt with before they become problems. Communication enabled with a RS485 serial port and the Modbus protocol support, more communication options with the gateway H8951. The meter need to be powered by a 90V AC to 277V AC supply source. Include 2 21-CTs board strips with 1inch (26mm) spacing between each CT connectors, for 42 circuits. The device dimensions are 228mm in width, 146mm in height and weight 1.5 kilograms.- Country of Origin
- US
- Part Number
- BCPMC142S
- Tariff Code
- 90283090
- EAN
- 3606480299599
- UNSPSC
- 83101808
Métodos de pago:
- Mejor oferta de:
Proveedor de confianza de Automa.Net- Disponibilidad:
- 1 piezaEn stockActualizado en: 12-11-2024
- Garantía:
- 12 meses
- Entrega Estimada:
- Bajo pedido
- Condición:
- Nuevos excedentes
Nuevos excedentes - Un artículo nuevo, sin usar, sin daños y sin garantía del fabricante. El artículo puede venir sin embalaje original o en embalaje de reemplazo. Si se proporciona, es posible que la caja haya sido abierta.
Proceso de Pago Seguro
Políticas de Devolución y Reembolso
Políticas de Envío
Políticas de Garantía
Environment
- Height
- 146 mm
- Standards
- ANSI C12.1 || UL 508 || EN 61010 || IEC 61036
- Mounting Support
- enclosure || panel
- Product Certifications
- UL
- Net Weight
- 1.5 kg
- Mounting Mode
- panel-mounted
- Ambient Air Temperature For Storage
- -40-70 °C
- Relative Humidity
- 0-95 % 0-60 °C
- Width
- 288 mm
- Operating Altitude
- 9842.52 ft (3000 m)
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- China Rohs Regulation
- X
- Eu Rohs Directive
- Compliant with Exemptions
Complementary
- Communication Port Support
- RS485
- Connection Pitch
- 26 mm
- Measurement Voltage
- 90-277 V phase to neutral || 150-480 V phase to phase
- Sampling Rate
- 256 samples/cycle
- Communication Port Protocol
- Modbus RTU
- Communication Of Data
- high current alarm || low-low current alarm || low current alarm || high-high current alarm
- Provided Equipment
- 42 x current transformer || 2 x cables
- Measurement Accuracy
- current 2 % 0.25…2 A || current 1 % 2…100 A
- Update Time
- 1.8 s
- Analogue Input Type
- solid core CT 100 A42 x
Specifications
- Network Frequency
- 50 Hz || 60 Hz
- Variant
- basic
- Type Of Measurement
- current
- Power Monitoring
- basic instrumentation
- Product Or Component Type
- multi-circuit energy meter
- Product Name
- PowerLogic BCPM
- Range
- PowerLogic
- Energy Management
- sub billing and cost allocation
- [Us] Rated Supply Voltage
- 90...277 V AC 50/60 Hz +/- 1 %
- Device Application
- sub billing
- Device Short Name
- BCPMC
