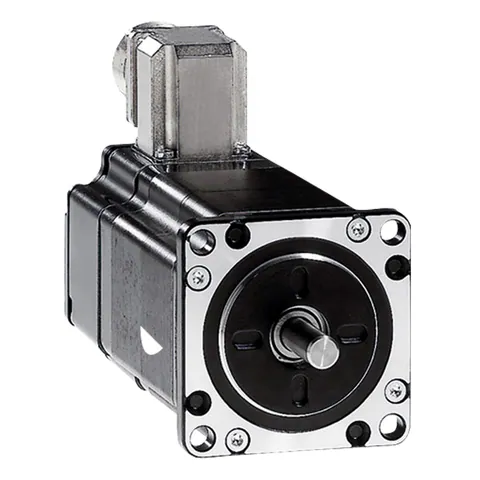

Schneider Electric BRS368H130AAB

This 3-phase stepper motor, compatible with the Lexium SD3 drives, is engineered for precise step movements defined by the stepper motor drive. It operates within a voltage range of 34VDC to 48VDC and achieves a maximum mechanical speed of 3000 RPM, ensuring effective performance in motion control tasks.

The motor's design includes a smooth shaft end with a diameter of 8 mm, and it is configured without a holding brake. It is equipped with an angled connector for electrical wiring, enhancing its integration into various applications.

With a step capacity that allows for up to 10,000 steps per revolution, this motor provides exceptional resolution, making it suitable for applications requiring high accuracy. The nominal torque of 1.5 Nm, combined with a time constant of 5.6 ms, allows for reliable operation across a range of conditions.

This motor is built to withstand harsh environments, featuring an IP56 degree of protection for the motor body and IP41 for the shaft end. It operates efficiently within ambient temperatures from -25°C to 40°C and can be stored in temperatures ranging from -25°C to 70°C. The maximum radial force at the first shaft end is rated at 50 N and 40 N at the second shaft end, supporting various mounting positions as per IEC 60034-7.

Compliance with multiple standards, including CE, CUL, and UL certifications, ensures that this product meets stringent industry requirements. Its construction adheres to regulations such as EN/IEC 50178, enhancing its...
