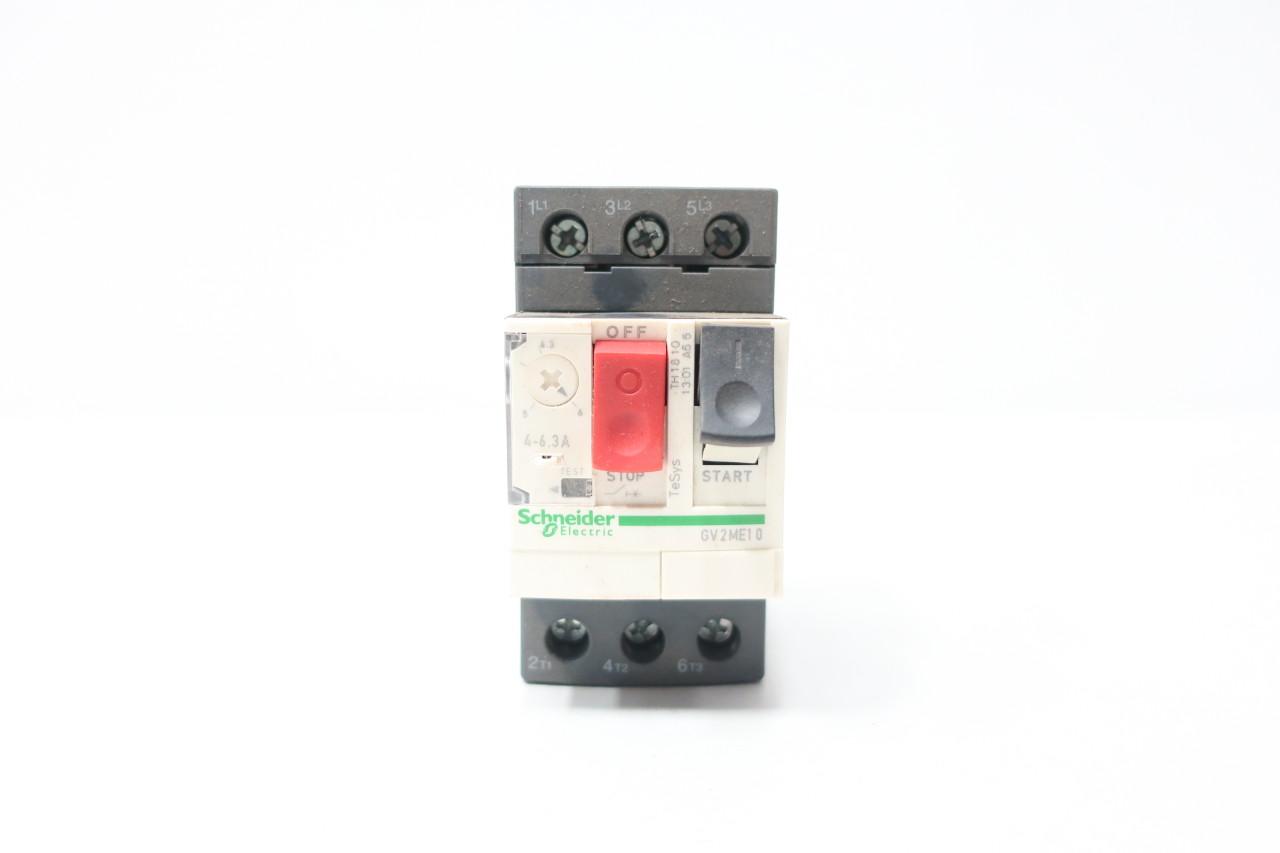

Schneider Electric GV2ME10
TeSys Deca Manual Starter and Protector, thermal magnetic circuit protector, push buttons, 4 to 6.3 A, screw clamp
1 / 5
Imagen de catálogo del fabricante
Imagen de catálogo del fabricante
Imagen de catálogo del fabricante
Imagen de catálogo del fabricante
Imagen de catálogo del fabricante
Descripción del producto
Ciclo de vida:
The GV2 manual starter and protector provides manual isolation, manual motor control, and thermal overcurrent protection in one compact unit. The basic motor starter GV2ME controls motors with full load currents up to 32 A. The manual starter is three pole with horsepower ratings. The manual starter is operated by push buttons. The Class 10 ambient compensated thermal over current is adjustable from 4 ampere to 6.3 ampere. This device has screw clamp terminals. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX), Green Premium compliant (RoHS/REACh).
Enviar consulta
Métodos de pago:
Detalles de la oferta
- Mejor oferta de:
- Proveedor de confianza — Reino Unido, miembro desde 2021
- Disponibilidad:
- 51 piezasEn stockActualizado en: 31-10-2025
- Condición:
- Nuevo Precintado de Fábrica
Nuevo Precintado de Fábrica - Un artículo completamente nuevo, sin usar, sin abrir, sin daños, en su embalaje original sellado por el fabricante.
El Vendedor es responsable de enviar el producto y facturar
Especificaciones
- Marca
- Schneider Electric
- Product Certifications
- CCC || UL || CSA || EAC || ATEX || LROS (Lloyds register of shipping) || BV || RINA || DNV-GL || UKCA
- Ik Degree Of Protection
- IK04
- Mechanical Robustness
- shocks 30 Gn for 11 ms || vibrations 5 Gn, 5...150 Hz
- Ambient Air Temperature For Operation
- -20-60 °C
- Standards
- EN/IEC 60947-2 || EN/IEC 60947-4-1
- Climatic Withstand
