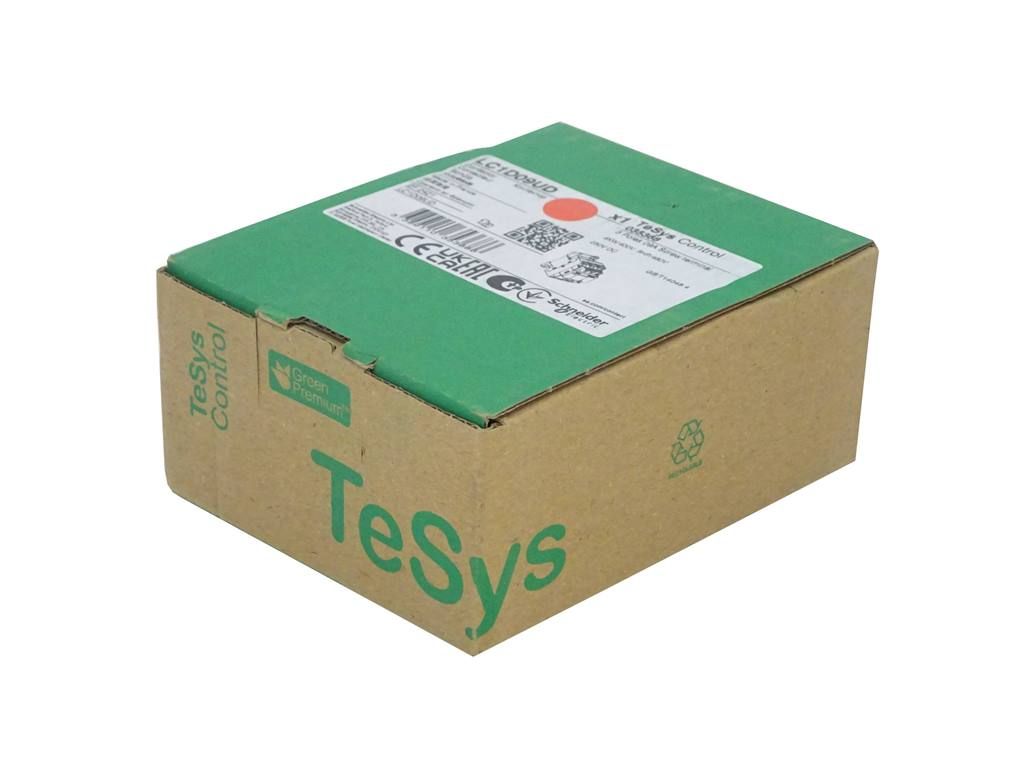

LC1D09UD

Environment

Product Certifications

UL || LROS (Lloyds register of shipping) || RINA || GOST || BV || GL || DNV || CSA || CCC || UKCA

Height

77 mm

Standards

CSA C22.2 No 14 || EN 60947-4-1 || EN 60947-5-1 || IEC 60947-4-1 || IEC 60947-5-1 || UL 508

Climatic Withstand

IACS E10 exposure to damp heat || IEC 60947-1 Annex Q category D exposure to damp heat

Net Weight

0.48 kg

Flame Retardance

V1 conforming to UL 94

Protective Treatment

THIEC 60068-2-30

Ip Degree Of Protection

IP20 front face IEC 60529

Mechanical Robustness

vibrations contactor open 2 Gn, 5...300 Hz) || vibrations contactor closed 4 Gn, 5...300 Hz) || shocks contactor open 10 Gn for 11 ms) || shocks contactor closed 15 Gn for 11 ms)

Operating Altitude

0...9842.52 ft (0...3000 m)

Fire Resistance

850 °C IEC 60695-2-1

Width

45 mm

Depth

95 mm

Permissible Ambient Air Temperature Around The Device

-40-60 °C || 60-70 °C with derating

Contractual warranty

Warranty

18 months

Offer Sustainability

Rohs Exemption Information

Yes

Mercury Free

Yes

Environmental Disclosure

ENVPEP110230EN

Sustainable Offer Status

Green Premium product

Pvc Free

Yes

Reach Regulation

Reference contains Substances of Very High Concern above the threshold

California Proposition 65

WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov

China Rohs Regulation

Product out of China RoHS scope. Substance declaration for your information.

Circularity Profile

ENVEOLI1102030EN

Eu Rohs Directive

Compliant with Exemptions

Complementary

Non-Overlap Time

1.5 ms on de-energisation between NC and NO contact || 1.5 ms on energisation between NC and NO contact

Minimum Switching Current

5 mA for signalling circuit

Power Dissipation Per Pole

1.56 W AC-1 || 0.2 W AC-3 || 0.2 W AC-3e

Average Impedance

2.5 mOhm - Ith 25 A 50 Hz for power circuit

Auxiliary Contact Composition

1 NO + 1 NC

[Ith] Conventional Free Air Thermal Current

25 A (at 60 °C) for power circuit || 10 A (at 60 °C) for signalling circuit

Control Circuit Voltage Limits

0.1...0.25 Uc -40-70 °C drop-out DC || 0.7...1.25 Uc -40-60 °C operational DC || 1...1.25 Uc 60-70 °C operational DC

Mounting Support

rail || plate

Contact Compatibility

M4

Control Circuit Type

DC standard

Safety Reliability Level

B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 || B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1

Pollution Degree

3

Hold-In Power Consumption In W

5.4-5.4 W 20 °C

Insulation Resistance

> 10 MOhm for signalling circuit

Rated Breaking Capacity

250 A at 440 V for power circuit conforming to IEC 60947

Irms Rated Making Capacity

250 A at 440 V for power circuit conforming to IEC 60947 || 140 A AC for signalling circuit conforming to IEC 60947-5-1 || 250 A DC for signalling circuit conforming to IEC 60947-5-1

Associated Fuse Rating

10 A gG for signalling circuit conforming to IEC 60947-5-1 || 25 A gG at <= 690 V coordination type 1 for power circuit || 20 A gG at <= 690 V coordination type 2 for power circuit

[Uimp] Rated Impulse Withstand Voltage

6 kV IEC 60947

Pole Contact Composition

3 NO

Connections - Terminals

power circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end || power circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end || power circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable end || power circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end || power circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid without cable end || power circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid without cable end || control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end || control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end || control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable end || control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end || control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid without cable end || control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid without cable end

Coil Technology

built-in bidirectional peak limiting diode suppressor

Time Constant

28 ms

Operating Time

63 ±15 % ms closing || 20 ±20 % ms opening

Minimum Switching Voltage

17 V for signalling circuit

Maximum Operating Rate

3600 cyc/h 60 °C

Signalling Circuit Frequency

25...400 Hz

Tightening Torque

power circuit 1.7 N.m screw clamp terminals flat Ø 6 mm || power circuit 1.7 N.m screw clamp terminals Philips No 2 || control circuit 1.7 N.m screw clamp terminals flat Ø 6 mm || control circuit 1.7 N.m screw clamp terminals Philips No 2 || control circuit 1.7 N.m screw clamp terminals pozidriv No 2 || power circuit 1.7 N.m screw clamp terminals pozidriv No 2

Electrical Durability

0.6 Mcycles 25 A AC-1 <= 440 V || 2 Mcycles 9 A AC-3 <= 440 V || 2 Mcycles 9 A AC-3e <= 440 V

Mechanical Durability

30 Mcycles

Inrush Power In W

5.4-5.4 W 20 °C)

Auxiliary Contacts Type

mechanically linked 1 NO + 1 NC IEC 60947-5-1 || mirror contact 1 NC IEC 60947-4-1

Compatibility Code

LC1D

Overvoltage Category

III

Maximum Horse Power Rating

1 hp at 230/240 V AC 50/60 Hz for 1 phase motors || 2 hp at 200/208 V AC 50/60 Hz for 3 phase motors || 2 hp at 230/240 V AC 50/60 Hz for 3 phase motors || 5 hp at 460/480 V AC 50/60 Hz for 3 phase motors || 7.5 hp at 575/600 V AC 50/60 Hz for 3 phase motors || 0.33 hp at 115 V AC 50/60 Hz for 1 phase motors

Motor Power Kw

2.2 kW at 220...230 V AC 50/60 Hz (AC-3) || 4 kW at 380...400 V AC 50/60 Hz (AC-3) || 4 kW at 415...440 V AC 50/60 Hz (AC-3) || 5.5 kW at 500 V AC 50/60 Hz (AC-3) || 5.5 kW at 660...690 V AC 50/60 Hz (AC-3) || 2.2 kW at 400 V AC 50/60 Hz (AC-4) || 2.2 kW at 220...230 V AC 50/60 Hz (AC-3e) || 4 kW at 380...400 V AC 50/60 Hz (AC-3e) || 4 kW at 415...440 V AC 50/60 Hz (AC-3e) || 5.5 kW at 500 V AC 50/60 Hz (AC-3e) || 5.5 kW at 660...690 V AC 50/60 Hz (AC-3e)

[Ui] Rated Insulation Voltage

power circuit 690 V IEC 60947-4-1 || power circuit 600 V CSA || power circuit 600 V UL || signalling circuit 690 V IEC 60947-1 || signalling circuit 600 V CSA || signalling circuit 600 V UL

[Icw] Rated Short-Time Withstand Current

105 A 40 °C - 10 s for power circuit || 210 A 40 °C - 1 s for power circuit || 30 A 40 °C - 10 min for power circuit || 61 A 40 °C - 1 min for power circuit || 100 A - 1 s for signalling circuit || 120 A - 500 ms for signalling circuit || 140 A - 100 ms for signalling circuit

Protective Cover

with

Specifications

[Uc] Control Circuit Voltage

250 V DC

[Ue] Rated Operational Voltage

power circuit <= 690 V AC 25...400 Hz || power circuit <= 300 V DC

Range Of Product

TeSys Deca

Contactor Application

motor control || resistive load

Product Or Component Type

contactor

Utilisation Category

AC-3 || AC-4 || AC-1 || AC-3e

[Ie] Rated Operational Current

9 A (at <60 °C) at <= 440 V AC AC-3 for power circuit || 25 A (at <60 °C) at <= 440 V AC AC-1 for power circuit || 9 A (at <60 °C) at <= 440 V AC AC-3e for power circuit

Poles Description

3P

Device Short Name

LC1D
