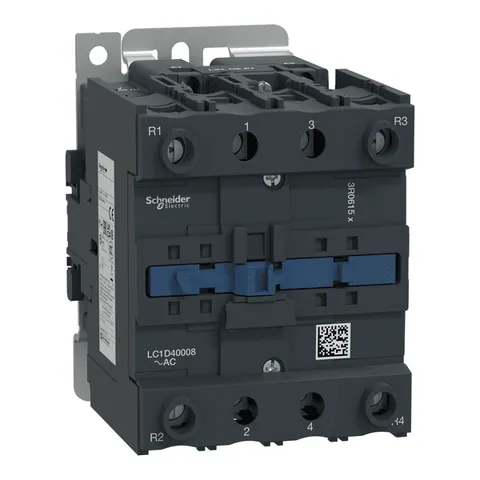

LC1D40008F7

Environment

Product Certifications

GL || LROS (Lloyds register of shipping) || GOST || UL || DNV || RINA || CSA || CCC || BV

Height

127 mm

Standards

CSA C22.2 No 14 || EN 60947-4-1 || EN 60947-5-1 || IEC 60947-4-1 || IEC 60947-5-1 || UL 508

Climatic Withstand

IACS E10 exposure to damp heat

Net Weight

1.44 kg

Flame Retardance

V1 conforming to UL 94

Protective Treatment

THIEC 60068-2-30

Ip Degree Of Protection

IP20 front face IEC 60529

Mechanical Robustness

shocks contactor open 8 Gn for 11 ms) || shocks contactor closed 10 Gn for 11 ms) || vibrations contactor opened 2 Gn, 5...300 Hz) || vibrations contactor closed 4 Gn, 5...300 Hz)

Operating Altitude

0...9842.52 ft (0...3000 m)

Fire Resistance

850 °C IEC 60695-2-1

Width

85 mm

Depth

125 mm

Permissible Ambient Air Temperature Around The Device

-40-60 °C || 60-70 °C with derating

Contractual warranty

Warranty

18 months

Offer Sustainability

Rohs Exemption Information

Yes

Mercury Free

Yes

Environmental Disclosure

ENVPEP110205EN

Sustainable Offer Status

Green Premium product

Toxic Heavy Metal Free

Yes

Reach Regulation

Free of Substances of Very High Concern above the threshold

California Proposition 65

WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov

Reach Free Of Svhc

Yes

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

China Rohs Regulation

Pro-active China RoHS declaration (out of China RoHS legal scope)

Circularity Profile

N/A

Eu Rohs Directive

Compliant

Complementary

Power Dissipation Per Pole

5.4 W AC-1

Average Impedance

1.5 mOhm - Ith 60 A 50 Hz for power circuit

[Ith] Conventional Free Air Thermal Current

60 A (at 60 °C) for power circuit

Control Circuit Voltage Limits

0.3...0.6 Uc -40-70 °C drop-out AC 50/60 Hz || 0.8...1.1 Uc -40-60 °C operational AC 50 Hz || 0.85...1.1 Uc -40-60 °C operational AC 60 Hz || 1...1.1 Uc 60-70 °C operational AC 50/60 Hz

Mounting Support

plate || rail

Contact Compatibility

M1

Control Circuit Type

AC 50/60 Hz

Safety Reliability Level

B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 || B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1

Pollution Degree

3

Rated Breaking Capacity

800 A at 440 V for power circuit conforming to IEC 60947

Irms Rated Making Capacity

800 A at 440 V for power circuit conforming to IEC 60947

Associated Fuse Rating

80 A gG at <= 690 V coordination type 1 for power circuit || 80 A gG at <= 690 V coordination type 2 for power circuit

Inrush Power In Va

140-140 VA 60 Hz cos phi 0.75 (at 20 °C) || 160-160 VA 50 Hz cos phi 0.75 (at 20 °C)

[Uimp] Rated Impulse Withstand Voltage

6 kV IEC 60947

Pole Contact Composition

2 NO + 2 NC

Connections - Terminals

control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end || control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end || control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end || control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable end || control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid without cable end || control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid without cable end || power circuit: screw connection 1 1-35 mm² - cable stiffness: flexible without cable end || power circuit: screw connection 2 1-25 mm² - cable stiffness: flexible without cable end || power circuit: screw connection 1 1-35 mm² - cable stiffness: flexible with cable end || power circuit: screw connection 2 1-25 mm² - cable stiffness: flexible with cable end || power circuit: screw connection 1 1-35 mm² - cable stiffness: solid without cable end || power circuit: screw connection 2 1-25 mm² - cable stiffness: solid without cable end

Coil Technology

without built-in suppressor module

Operating Time

4...19 ms opening || 12...26 ms closing

Maximum Operating Rate

3600 cyc/h 60 °C

Tightening Torque

control circuit 1.7 N.m screw clamp terminals flat Ø 6 mm || control circuit 1.7 N.m screw clamp terminals Philips No 2 || power circuit 8 N.m screw clamp terminals 25-35 mm² hexagonal 4 mm || power circuit 5 N.m screw clamp terminals 1-25 mm² hexagonal 4 mm || control circuit 1.7 N.m screw clamp terminals pozidriv No 2

Electrical Durability

1.4 Mcycles 60 A AC-1 <= 440 V

Mechanical Durability

6 Mcycles

Compatibility Code

LC1D

Hold-In Power Consumption In Va

13-13 VA 60 Hz cos phi 0.3 (at 20 °C) || 15-15 VA 50 Hz cos phi 0.3 (at 20 °C)

Overvoltage Category

III

[Ui] Rated Insulation Voltage

power circuit 600 V CSA || power circuit 600 V UL || power circuit 690 V IEC 60947-4-1

[Icw] Rated Short-Time Withstand Current

320 A 40 °C - 10 s for power circuit || 720 A 40 °C - 1 s for power circuit || 72 A 40 °C - 10 min for power circuit || 165 A 40 °C - 1 min for power circuit

Heat Dissipation

4-5 W at 50/60 Hz

Protective Cover

without

Specifications

[Uc] Control Circuit Voltage

110 V AC 50/60 Hz

[Ue] Rated Operational Voltage

power circuit <= 690 V AC 25...400 Hz || power circuit <= 300 V DC

Range Of Product

TeSys Deca

Contactor Application

resistive load

Product Or Component Type

contactor

Range

TeSys

Utilisation Category

AC-1

[Ie] Rated Operational Current

60 A (at <60 °C) at <= 440 V AC AC-1 for power circuit

Poles Description

4P

Device Short Name

LC1D
