Schneider Electric LC1D65A6BBE
IEC Contactor, TeSys Deca Green, Non-Reversing, 65A, 3 Pole, 3 NO, 24VDC Coil
1 / 1

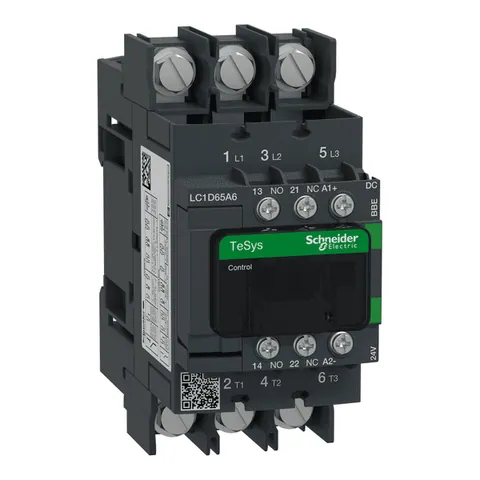

Imagen de catálogo del fabricante
Descripción del producto
Ciclo de vida:
The TeSys D Green contactor is engineered for integration within control systems, suitable for creating motor starters across various applications. This specific model, rated for 65A, operates as a 3-pole IEC contactor and supports a variety of motor loads.
It offers impressive ratings for three-phase operations, accommodating 20HP at 200-208VAC, 20HP at 240VAC, 40HP at 480VAC, and 50HP at 600VAC. Single-phase ratings include 5HP at 115VAC and 10HP at 240VAC. The contactor utilizes a low-consumption 24V DC coil, facilitating direct control from a PLC output of 24V DC/500mA.
Standard features include one normally open (NO) and one normally closed (NC) auxiliary contact, with the NC contact being mirror certified. The product is compatible with both DIN rail and direct panel mounting, ensuring flexibility in installation. The physical dimensions are 122mm in height, 55mm in width, and 120mm in depth, weighing 1.002 kg. It meets multiple standards including UL, CSA, IEC, and is classified as a Green Premium product under RoHS and REACh regulations.
Enviar consulta
Métodos de pago:
Detalles de la oferta
- Mejor oferta de:
Proveedor de confianza — Rumanía, miembro desde 2023, 1–4 empleados- Disponibilidad:
- 1 piezaBajo pedidoActualizado en: 22-08-2026
- Condición:
- Nuevos excedentes
Nuevos excedentes - Un artículo nuevo, sin usar, sin daños y sin garantía del fabricante. El artículo puede venir sin embalaje original o en embalaje de reemplazo. Si se proporciona, es posible que la caja haya sido abierta.
El Vendedor es responsable de enviar el producto y facturar
Especificaciones
- Marca
- Schneider Electric
- Product Certifications
- CCC || CSA || EAC || UL || KC || DNV-GL || LROS (Lloyds register of shipping) || UKCA
- Standards
- EN/IEC 60947-4-1 || EN/IEC 60947-5-1 || UL 60947-4-1 || CSA C22.2 No 60947-4-1 || IEC 60335-1
- Climatic Withstand
- IACS E10 exposure to damp heat || IEC 60947-1 Annex Q category D exposure to damp heat
- Flame Retardance
- V1 conforming to UL 94
- Ip Degree Of Protection
- IP20 front face IEC 60529
- Mechanical Robustness
- vibrations contactor open 2 Gn, 5...300 Hz) || vibrations contactor closed 4 Gn, 5...300 Hz) || shocks contactor open 10 Gn for 11 ms) || shocks contactor closed 15 Gn for 11 ms)
