Schneider Electric LC1D80AB7
IEC Contactor, Nonreversing, 80A, 40HP at 480VAC, 3 Phase, 3 Pole, 3 NO, 24VAC 50/60Hz Coil
1 / 2

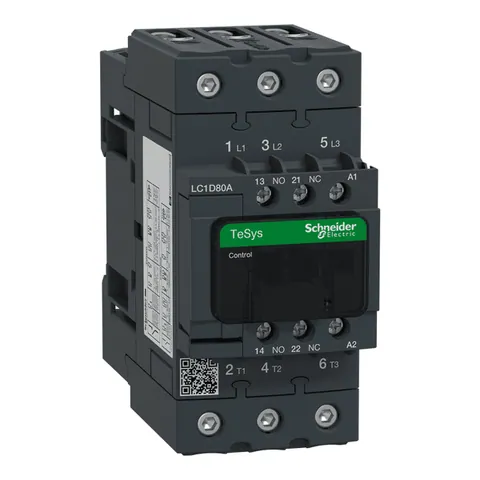

Imagen de catálogo del fabricante
Descripción del producto
Ciclo de vida:
The IEC contactor is tailored for integration into control systems, suitable for various motor starter applications. With a rating of 80A for inductive loads, it operates efficiently in three-phase configurations, capable of handling up to 40HP at 480VAC. Additionally, it supports single-phase applications with ratings of 7.5HP at 115VAC and 15HP at 240VAC.
Equipped with a coil voltage of 24VAC at 50/60Hz, this contactor features one normally open and one normally closed auxiliary contact, with the latter being mirror certified. The unit can be mounted on a DIN rail or directly onto a panel, facilitating flexible installation options.
The contactor adheres to several international standards, including UL, CSA, and IEC, ensuring compliance and reliability across various applications. Its dimensions are 122 mm in height, 55 mm in width, and 120 mm in depth, and it weighs 0.86 kg. This product is also certified as RoHS compliant, underlining its commitment to environmental sustainability.
Enviar consulta
Métodos de pago:
Detalles de la oferta
- Mejor oferta de:
Proveedor de confianza — Rumanía, miembro desde 2023, 1–4 empleados- Disponibilidad:
- 1 piezaBajo pedidoActualizado en: 22-08-2026
- Condición:
- Nuevos excedentes
Nuevos excedentes - Un artículo nuevo, sin usar, sin daños y sin garantía del fabricante. El artículo puede venir sin embalaje original o en embalaje de reemplazo. Si se proporciona, es posible que la caja haya sido abierta.
El Vendedor es responsable de enviar el producto y facturar
Especificaciones
- Marca
- Schneider Electric
- Product Certifications
- CCC || CSA || EAC || UL || KC || DNV-GL || LROS (Lloyds register of shipping)
- Standards
- EN/IEC 60947-4-1 || EN/IEC 60947-5-1 || UL 60947-4-1 || CSA C22.2 No 60947-4-1 || IEC 60335-1
- Climatic Withstand
- IACS E10 exposure to damp heat || IEC 60947-1 Annex Q category D exposure to damp heat
- Flame Retardance
- V1 conforming to UL 94
- Protective Treatment
- THIEC 60068-2-30
- Ip Degree Of Protection
- IP20 front face IEC 60529
