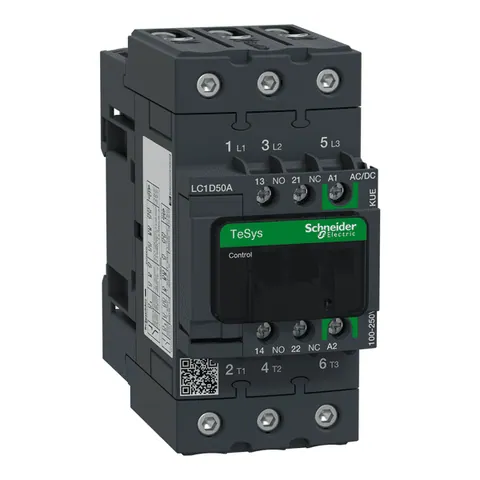

Schneider Electric LC1D50AKUE
IEC Contactor, Nonreversing, 50A, 3 Phase, 3 NO, 100/250VAC/VDC Coil
1 / 2
Imagen de catálogo del fabricante
Descripción del producto
Ciclo de vida:
The nonreversing IEC contactor is rated for a maximum of 50A and can handle inductive loads in three-phase configurations. It supports a horsepower rating of 40HP at 480VAC and is suitable for a variety of motor control applications.
With robust compatibility, it operates within a voltage range of 100-250VAC/VDC and features a built-in electronic coil that minimizes power consumption. The contactor's dimensions are 122 mm in height, 55 mm in width, and 120 mm in depth, with a total weight of 0.997 kg.
The device meets multiple international standards, including UL, CSA, and IEC certifications, and is designed to withstand harsh environmental conditions, supporting an operating temperature range of -40°C to 60°C. It is rated for a short-circuit current rating (SCCR) of up to 100kA when paired with appropriate protection devices.
Included as standard are one normally open and one normally closed auxiliary contact, with screw clamp terminals for reliable load and auxiliary connections. The contactor is compliant with RoHS and REACh regulations, positioning it as a Green Premium product.
Enviar consulta
Métodos de pago:
Detalles de la oferta
- Mejor oferta de:
Proveedor de confianza — Rumanía, miembro desde 2023, 1–4 empleados- Disponibilidad:
- 1 piezaBajo pedidoActualizado en: 22-08-2026
- Condición:
- Nuevos excedentes
Nuevos excedentes - Un artículo nuevo, sin usar, sin daños y sin garantía del fabricante. El artículo puede venir sin embalaje original o en embalaje de reemplazo. Si se proporciona, es posible que la caja haya sido abierta.
El Vendedor es responsable de enviar el producto y facturar
Especificaciones
- Marca
- Schneider Electric
- Product Certifications
- CCC || CSA || EAC || UL || KC || DNV-GL || LROS (Lloyds register of shipping) || UKCA
- Standards
- EN/IEC 60947-4-1 || EN/IEC 60947-5-1 || UL 60947-4-1 || CSA C22.2 No 60947-4-1 || IEC 60335-1
- Climatic Withstand
- IACS E10 exposure to damp heat || IEC 60947-1 Annex Q category D exposure to damp heat
- Flame Retardance
- V1 conforming to UL 94
- Ip Degree Of Protection
- IP20 front face IEC 60529
- Mechanical Robustness
- vibrations contactor open 2 Gn, 5...300 Hz) || vibrations contactor closed 4 Gn, 5...300 Hz) || shocks contactor open 10 Gn for 11 ms) || shocks contactor closed 15 Gn for 11 ms)
