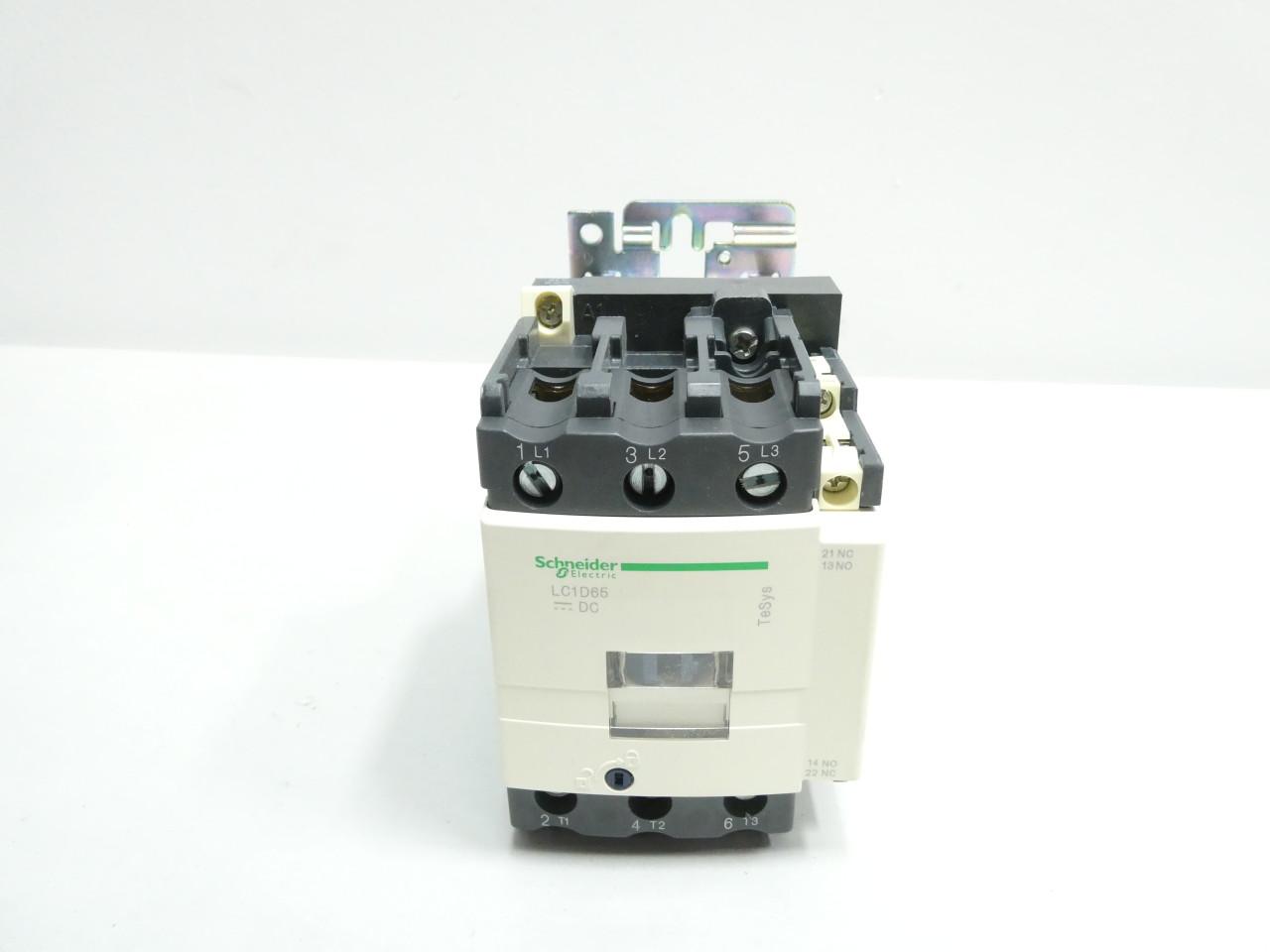

LC1D65BD

Additional Information

Part Number

LC1D65BD

UNSPSC

39121529

Tariff Code

8536410045

Country of Origin

CZ

Environment

Product Certifications

GOST || LROS (Lloyds register of shipping) || DNV || CCC || CSA || GL || UL || RINA || UKCA

Height

127 mm

Standards

IEC 60947-5-1 || IEC 60947-4-1 || EN 60947-4-1 || UL 508 || EN 60947-5-1

Climatic Withstand

IACS E10 exposure to damp heat

Net Weight

2.185 kg

Flame Retardance

V1 conforming to UL 94

Ip Degree Of Protection

IP2X VDE 0106 || IP2X IEC 60529

Mechanical Robustness

shocks contactor closed 15 Gn for 11 ms) || vibrations contactor opened 2 Gn, 5...300 Hz) || vibrations contactor closed 4 Gn, 5...300 Hz) || shocks contactor opened 10 Gn for 11 ms)

Operating Altitude

0...9842.52 ft (0...3000 m)

Fire Resistance

850 °C IEC 60695-2-1

Width

85 mm

Depth

176 mm

Contractual warranty

Warranty

18 months

Offer Sustainability

Rohs Exemption Information

Yes

Mercury Free

Yes

Environmental Disclosure

ENVPEP110205EN

Sustainable Offer Status

Green Premium product

Pvc Free

Yes

Toxic Heavy Metal Free

Yes

Reach Regulation

Free of Substances of Very High Concern above the threshold

California Proposition 65

WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov

Reach Free Of Svhc

Yes

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

China Rohs Regulation

Pro-active China RoHS declaration (out of China RoHS legal scope)

Circularity Profile

N/A

Eu Rohs Directive

Compliant

Complementary

Non-Overlap Time

1.5 ms on energisation between NC and NO contacts || 1.5 ms on de-energisation between NC and NO contacts

Minimum Switching Current

5 mA for control circuit

Power Dissipation Per Pole

6.4 W AC-1 || 4.2 W AC-3e || 4.2 W AC-3

Auxiliary Contact Composition

1 NO + 1 NC

[Ith] Conventional Free Air Thermal Current

80 A (at 60 °C) for power circuit || 10 A (at 60 °C) for control circuit

Control Circuit Voltage Limits

0.75...1.25 Uc -40-60 °C operational DC || 1...1.25 Uc 60-70 °C operational DC || 0.1...0.3 Uc -40-70 °C drop-out DC

Mounting Support

plate || rail

Control Circuit Type

DC wide range

Safety Reliability Level

B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1 || B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1

Hold-In Power Consumption In W

7.4-7.4 W 20 °C

Insulation Resistance

> 10 MOhm for control circuit

Rated Breaking Capacity

1000 A at 440 V for power circuit conforming to IEC 60947

Irms Rated Making Capacity

1000 A at 440 V DC for power circuit conforming to IEC 60947 || 1000 A at 440 V for power circuit conforming to IEC 60947 || 250 A DC for control circuit conforming to IEC 60947-5-1

Associated Fuse Rating

125 A gG at <= 690 V coordination type 2 for power circuit || 160 A gG at <= 690 V coordination type 1 for power circuit conforming to IEC 60947-5-1 || 125 A gG at <= 690 V coordination type 1 for power circuit || 10 A gG for control circuit conforming to IEC 60947-5-1

[Uimp] Rated Impulse Withstand Voltage

8 kV IEC 60947

Pole Contact Composition

3 NO

Connections - Terminals

control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: rigid without cable end || control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end || control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end || control circuit: screw clamp terminals 1 1-2.5 mm² - cable stiffness: flexible with cable end || control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end || power circuit: screw terminals 1 2.5-25 mm² - cable stiffness: rigid || power circuit: screw terminals 2 2.5-16 mm² - cable stiffness: rigid without cable end || power circuit: screw terminals 1 2.5-25 mm² - cable stiffness: flexible without cable end || power circuit: screw terminals 2 2.5-16 mm² - cable stiffness: flexible without cable end || power circuit: screw terminals 1 2.5-25 mm² - cable stiffness: flexible with cable end || power circuit: screw terminals 2 2.5-10 mm² - cable stiffness: flexible with cable end || control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: rigid || control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: rigid

Coil Technology

built-in bidirectional peak limiting diode suppressor

Time Constant

34 ms

Operating Time

50 ms closing || 20 ms opening

Minimum Switching Voltage

17 V for control circuit

Maximum Operating Rate

3600 cyc/h 60 °C

Tightening Torque

control circuit 1.7 N.m screw clamp terminal Philips No 2 || power circuit 5 N.m screw terminal flat Ø 6 to Ø 8 mm || control circuit 1.7 N.m screw clamp terminal pozidriv No 2 || control circuit 1.7 N.m screw clamp terminal flat Ø 6 mm

Mechanical Durability

10000000 cycles

Inrush Power In W

19-19 W 20 °C)

Auxiliary Contacts Type

mirror contact 1 NC IEC 60947-4-1 || mechanically linked 1 NO + 1 NC IEC 60947-5-1

Compatibility Code

LC1D

Overvoltage Category

III

Maximum Horse Power Rating

10 hp at 230/240 V AC 60 Hz for 1 phase motors || 20 hp at 200/208 V AC 60 Hz for 3 phase motors || 20 hp at 230/240 V AC 60 Hz for 3 phase motors || 40 hp at 460/480 V AC 60 Hz for 3 phase motors || 50 hp at 575/600 V AC 60 Hz for 3 phase motors || 5 hp at 115 V AC 60 Hz for 1 phase motors

Motor Power Kw

30 kW at 380...400 V AC 50 Hz || 37 kW at 500 V AC 50 Hz || 37 kW at 660...690 V AC 50 Hz || 18.5 kW at 220...230 V AC 50 Hz || 30 kW at 415 V AC 50 Hz || 37 kW at 1000 V AC 50 Hz (AC-3) || 11 kW at 400 V AC 50 Hz (AC-4) || 30 kW at 440 V AC 50 Hz (AC-3)

[Ui] Rated Insulation Voltage

control circuit 600 V UL || power circuit 600 V CSA || power circuit 600 V UL IEC 60947-1 || control circuit 690 V IEC 60947-1 || power circuit 690 V IEC 60947-1 || power circuit 1000 V CSA IEC 60947-4-1 || control circuit 600 V CSA

Rated Operational Power In W

48 W 24 V DC-13 3000000 cycles - control circuit || 96 W 24 V DC-13 1000000 cycles - control circuit || 14 W 24 V DC-13 10000000 cycles - control circuit

Protective Cover

with

Specifications

[Uc] Control Circuit Voltage

24 V DC

[Ue] Rated Operational Voltage

power circuit <= 690 V AC 25...400 Hz

Range Of Product

TeSys Deca

Contactor Application

motor control

Product Or Component Type

contactor

Range

TeSys

Utilisation Category

AC-3 || AC-2 || AC-1 || AC-3e

[Ie] Rated Operational Current

65 A (at <60 °C) at <= 440 V AC AC-3 for power circuit || 65 A (at <60 °C) at <= 440 V AC AC-3e for power circuit || 80 A (at <60 °C) at <= 440 V AC AC-1 for power circuit

Poles Description

3P

Device Short Name

LC1D
