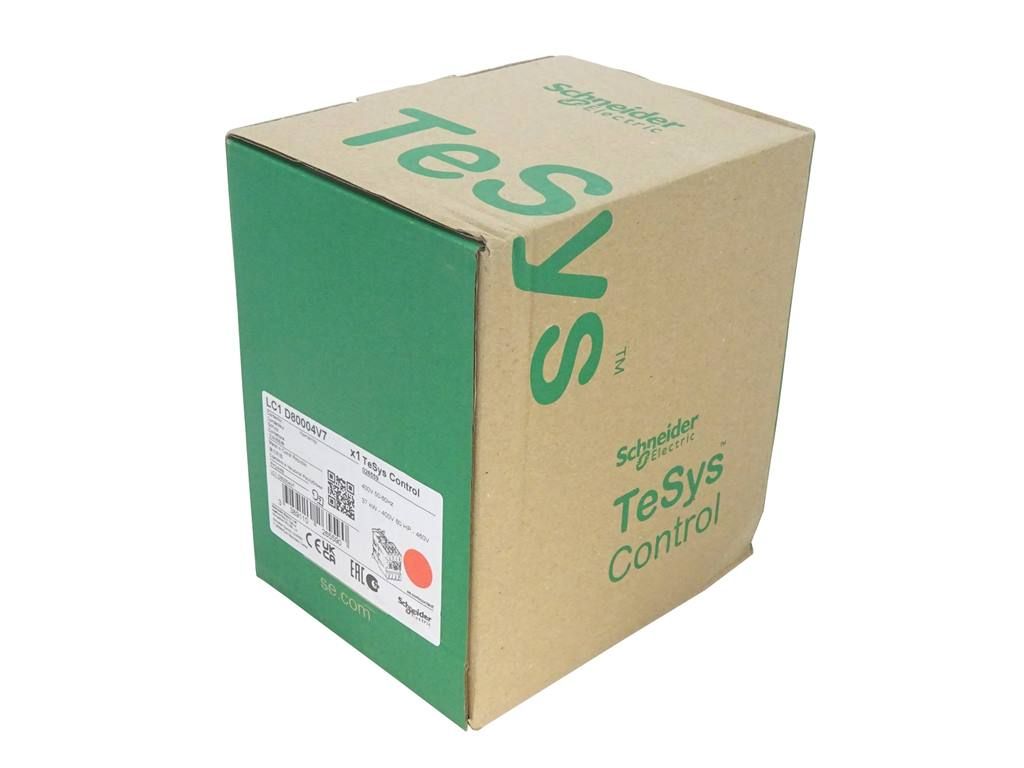

Schneider Electric LC1D80004V7

The TeSys Deca contactor is designed for AC-1 applications, capable of handling up to 125A at 440V. It features a 400V coil operating at 50/60 Hz and utilizes screw clamp terminals for power and control connections, without auxiliary contacts. The device exhibits a mechanical durability of 4 million cycles and an electrical durability of 0.8 million cycles.

With an operating temperature range of -40°C to 60°C, this contactor operates without derating up to an altitude of 3000m. It supports maximum operating rates of 3600 cycles per hour at temperatures up to 60°C. The dimensions are 127mm in height, 96mm in width, and 125mm in depth, allowing for mounting on a rail or plate.

It is compliant with multiple standards including IEC 60529 for IP20 protection on the front face, and is certified for a variety of applications, ensuring reliability in demanding environments. The contactor's rated insulation voltage is 600V (CSA certified), with a rated impulse withstand voltage of 8kV. The device is also designed to operate under various climatic conditions, conforming to IACS E10 for exposure to damp heat.
