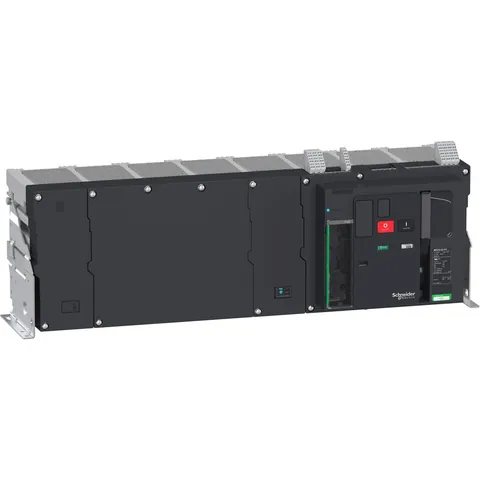

Schneider Electric
LV848121
1 / 1
- Country of Origin
- FR
- Part Number
- LV848121
- Tariff Code
- 85362090
- EAN
- 3606480824050
- UNSPSC
- 39121601
- Consigue plazos de pago de hasta 90 días de 500+ proveedores.
- Descuentos de reventa de hasta el 40%!
Enviar solicitud de precio
1
Formas de pago:
Specifications
- Network Frequency
- 50/60 Hz
- Network Type
- AC
- Breaking Capacity Code
- H1
- Product Or Component Type
- circuit breaker
- Product Name
- MasterPact MTZ3
- Range
- Masterpact
- Utilisation Category
- category B
- Suitability For Isolation
- yes IEC 60947-2
- Poles Description
- 4P
- Neutral Position
- left
- Device Application
- protection
- Device Short Name
- MTZ3 63 H1
Complementary
- [Ics] Rated Service Breaking Capacity
- 100 kA 220/415 V AC 50/60 Hz IEC 60947-2 || 100 kA 440 V AC 50/60 Hz IEC 60947-2 || 100 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 100 kA 660/690 V AC 50/60 Hz IEC 60947-2
- Line Rated Current
- 6300 A 40 °C
- Connection Pitch
- 230 mm
- [Ue] Rated Operational Voltage
- 690 V AC 50/60 Hz IEC 60947-2
- Mounting Support
- rails || base plate
- Circuit Breaker Ct Rating
- 6300 A
- Maximum Breaking Time
- 25-25 ms
- Depth
- 300 mm
- Control Type
- push-button
- Maximum Closing Response Time
- 80 ms
- Mounting Mode
- fixed
- Breaking Capacity
- 100 kA Icu 220/415 V AC 50/60 Hz IEC 60947-2 || 100 kA Icu 440 V AC 50/60 Hz IEC 60947-2 || 100 kA Icu 500/525 V AC 50/60 Hz IEC 60947-2 || 100 kA Icu 660/690 V AC 50/60 Hz IEC 60947-2
- [Icm] Rated Short-Circuit Making Capacity
- 220 kA 220/415 V AC 50/60 Hz || 220 kA 440 V AC 50/60 Hz || 220 kA 500/525 V AC 50/60 Hz || 220 kA 660/690 V AC 50/60 Hz
- Electrical Durability
- AC-3 6000 cycles 440/690 V AC 50/60 Hz IEC 60947-3 || 1500 cycles 440 V AC 50/60 Hz IEC 60947-2 || 1500 cycles 690 V AC 50/60 Hz IEC 60947-2 || AC-23A 1500 cycles 440 V AC 50/60 Hz IEC 60947-3 || AC-23A 1500 cycles 690 V AC 50/60 Hz IEC 60947-3
- [Ui] Rated Insulation Voltage
- 1000 V AC 50/60 Hz IEC 60947-2
- Mechanical Durability
- 10000 cycles with periodic preventive maintenance IEC 60947-2
- Height
- 352 mm
- Width
- 997 mm
- [Uimp] Rated Impulse Withstand Voltage
- 12 kVIEC 60947-2
- [Icw] Rated Short-Time Withstand Current
- 100 kA 0.5 s IEC 60947-2 || 100 kA 1 s IEC 60947-2 || 100 kA 3 s IEC 60947-2
Offer Sustainability
- Rohs Exemption Information
- Yes
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP1607009EN
- Sustainable Offer Status
- Green Premium product
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- California Proposition 65
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Circularity Profile
- ENVEOLI1607009EN
- Eu Rohs Directive
- Compliant
Environment
- Product Certifications
- ASTA
- Ambient Air Temperature For Operation
- -25-70 °C
- Standards
- IEC 60364-8-1 || IEC 60947-2
- Pollution Degree
- 3 IEC 60947-1
- Ambient Air Temperature For Storage
- -40-85 °C
