Schneider Electric M9F22402

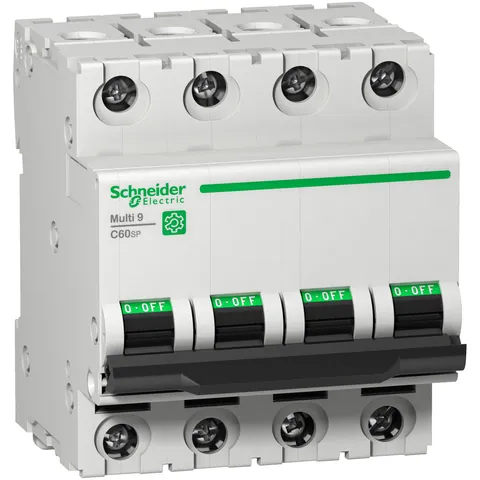

The Multi9 C60SP is designed as a low voltage miniature circuit breaker (MCB) that features four protected poles and operates at a rated current of 2A. It complies with the EN/IEC 60947-2 standard, offering a short circuit breaking capacity of up to 10kA at 415VAC. This device is intended for use by original equipment manufacturers (OEMs) and control panel builders, providing essential protection against electrical faults including short circuits, earth leakage, and overloads.

With an operational voltage of 240VAC, the MCB supports a wide range of applications in both industrial and residential settings. The product is characterized by its electrical durability of up to 10,000 cycles and mechanical durability of 20,000 cycles, ensuring reliable performance over time. The rated insulation voltage is 500VAC, and it can withstand impulse voltages up to 6kV.

In terms of physical specifications, the MCB measures 72mm in width, 81mm in height, and 72mm in depth, while its light grey color (RAL7035) ensures compatibility with various panel designs. The IP20 degree of protection, as per IEC/EN 60529, safeguards the terminals, making it suitable for environments with pollution degree 3. It can be mounted on a DIN rail and features a control type toggle for user-friendly operation.
