NSYMR126

Additional Information

Part Number

NSYMR126

UNSPSC

39121323

Tariff Code

8538908160

Country of Origin

FR

Offer Sustainability

China Rohs Regulation

Pro-active China RoHS declaration (out of China RoHS legal scope)

Circularity Profile

N/A

Rohs Exemption Information

Yes

Mercury Free

Yes

Environmental Disclosure

ENVPEP2202003EN

Sustainable Offer Status

Green Premium product

Toxic Heavy Metal Free

Yes

Eu Rohs Directive

Pro-active compliance (Product out of EU RoHS legal scope)

Reach Regulation

Free of Substances of Very High Concern above the threshold

Reach Free Of Svhc

Yes

Specifications

Enclosure Nominal Dimensions

H: 1200 mm W: 1200 mm || - H: 1200 mm W: 600 mm

Range Compatibility

Spacial Spacial S3D || Spacial Spacial CRN || Spacial Spacial S3X || Thalassa Thalassa PLM

Material

steel

Accessory / Separate Part Category

mounting accessory

Surface Finish

zinc coated

Quantity Per Set

set of 1

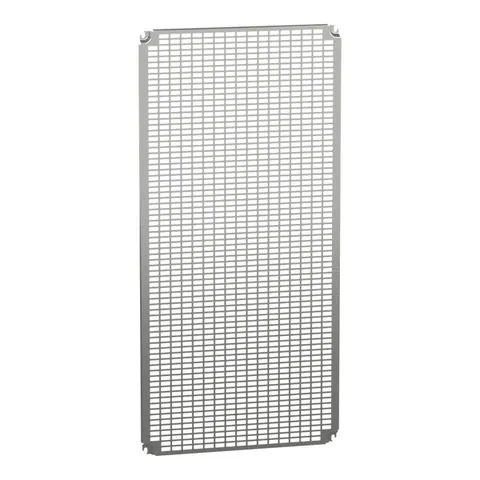

Product Or Component Type

mounting plate

Device Application

multi-purpose

Mounting Plate Description

Telequick perforated

Range

Spacial

Mounting Location

step slide || direct fixing on backstuds

Complementary

Cut-Out Dimensions

11 x 26 mm

Number Of Slots

1275

Width

551 mm

Height

1145 mm

Variant Particularity

with enclosures H1200 x W1200 || installation in rear of enclosure

Thickness

2 mm

Net Weight

4.78 kg

Depth

15 mm

Fixing Mode

screwed on backstuds M8 || by fixing element

Contractual warranty

Warranty

18 months
