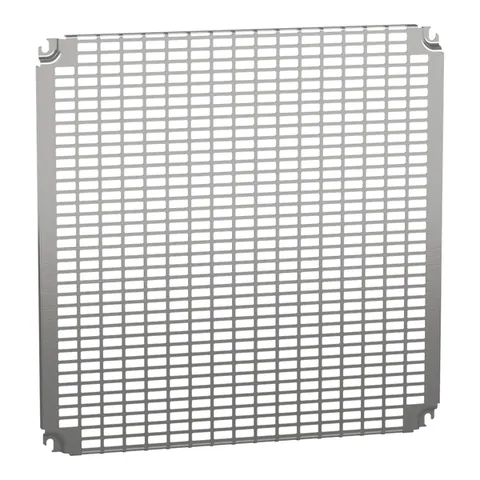

NSYMR66

Additional Information

Part Number

NSYMR66

UNSPSC

39121323

Tariff Code

7326908688

Country of Origin

FR

Complementary

Variant Particularity

installation in rear of enclosure

Thickness

2 mm

Net Weight

2.46 kg

Depth

15 mm

Fixing Mode

screwed on backstuds M8 || by fixing element

Cut-Out Dimensions

11 x 26 mm

Number Of Slots

646

Width

551 mm

Height

555 mm

Offer Sustainability

Rohs Exemption Information

Yes

Mercury Free

Yes

Environmental Disclosure

ENVPEP2202003EN

Sustainable Offer Status

Green Premium product

Toxic Heavy Metal Free

Yes

Reach Regulation

Free of Substances of Very High Concern above the threshold

Reach Free Of Svhc

Yes

China Rohs Regulation

Pro-active China RoHS declaration (out of China RoHS legal scope)

Circularity Profile

N/A

Eu Rohs Directive

Pro-active compliance (Product out of EU RoHS legal scope)

Specifications

Enclosure Nominal Dimensions

H: 600 mm W: 600 mm

Range Compatibility

Spacial Spacial S3D || Spacial Spacial CRN || Spacial Spacial S3X || Thalassa Thalassa PLM

Accessory / Separate Part Category

mounting accessory

Surface Finish

zinc coated

Product Or Component Type

mounting plate

Range

Spacial

Mounting Location

step slide || direct fixing on backstuds

Material

steel

Quantity Per Set

set of 1

Device Application

multi-purpose

Mounting Plate Description

Telequick perforated

Contractual warranty

Warranty

18 months
