Schneider Electric RXM4AB2P7

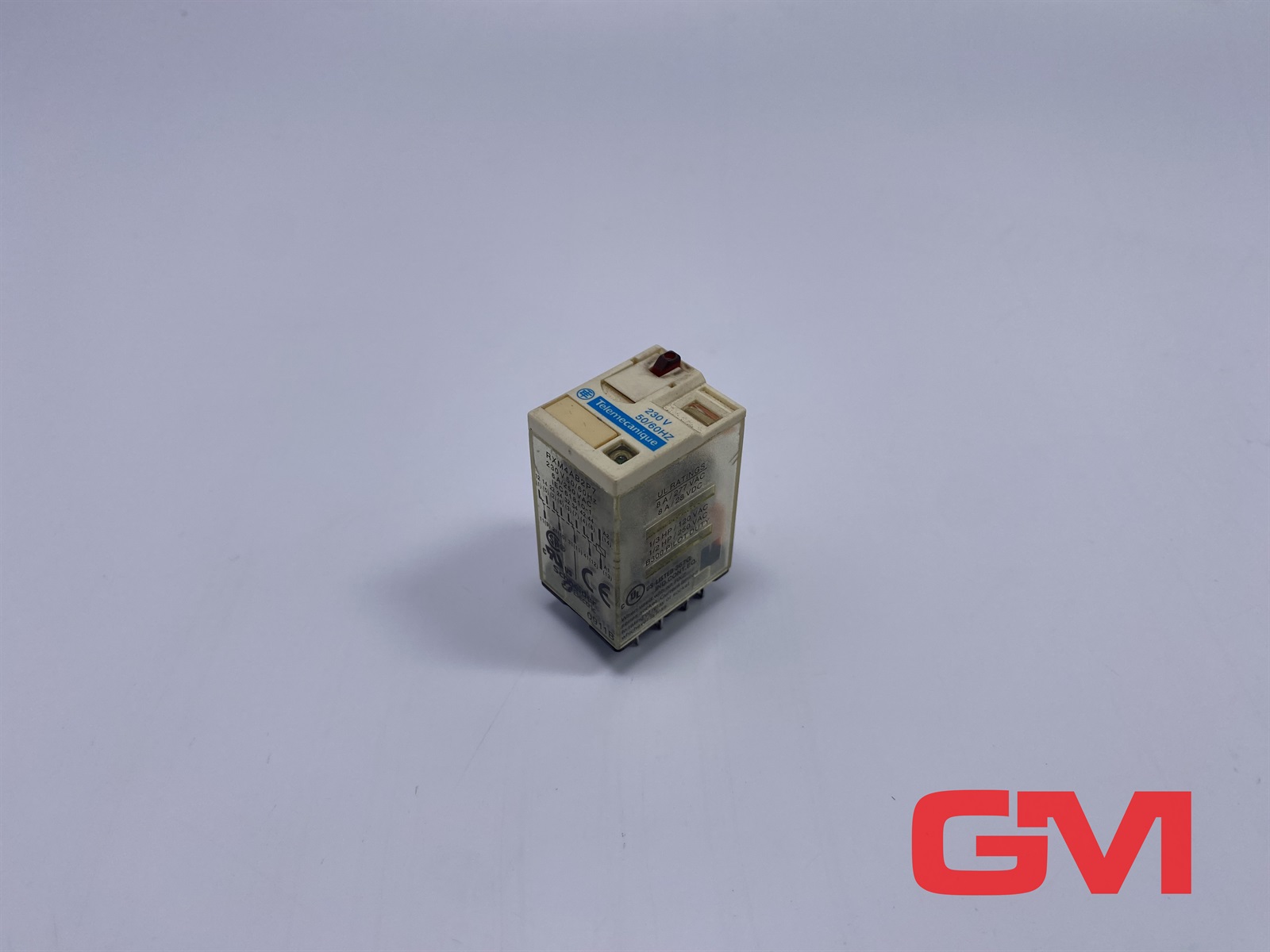

The RXM miniature relay is designed for integration with a RXZE socket, serving various industrial applications such as automation control panels, HVAC systems, and motor controls. This relay operates at a control circuit voltage of 230 V AC within a frequency range of 50/60 Hz. It incorporates a one-step lockable test button, which can be momentarily activated by pressing the red pushbutton, while the green part locks the button in place. Additionally, a mechanical indicator adjacent to the test button uses an orange flag to denote the relay's contact status, complemented by a green LED that illuminates when the relay is engaged.

This device adheres to multiple international standards, including IEC, CE, UL, and CSA, confirming its compliance for safety and reliability in various environments. With a maximum switching capacity of 1500 VA and a continuous output current of 5 A, it offers high versatility and is suitable for low to medium voltage switchgear applications. The relay is capable of withstanding ambient temperatures from -40°C to 55°C and has an IP40 protection rating, making it resilient against environmental factors.

For enhanced stability against vibrations, a plastic or metal clamp can be added to the socket. The relay is packaged in lots of 10 and is part of a larger series of RXM plug-in relays, which provide options with varying contact configurations and ratings, thereby catering to both simple and complex automation systems.
