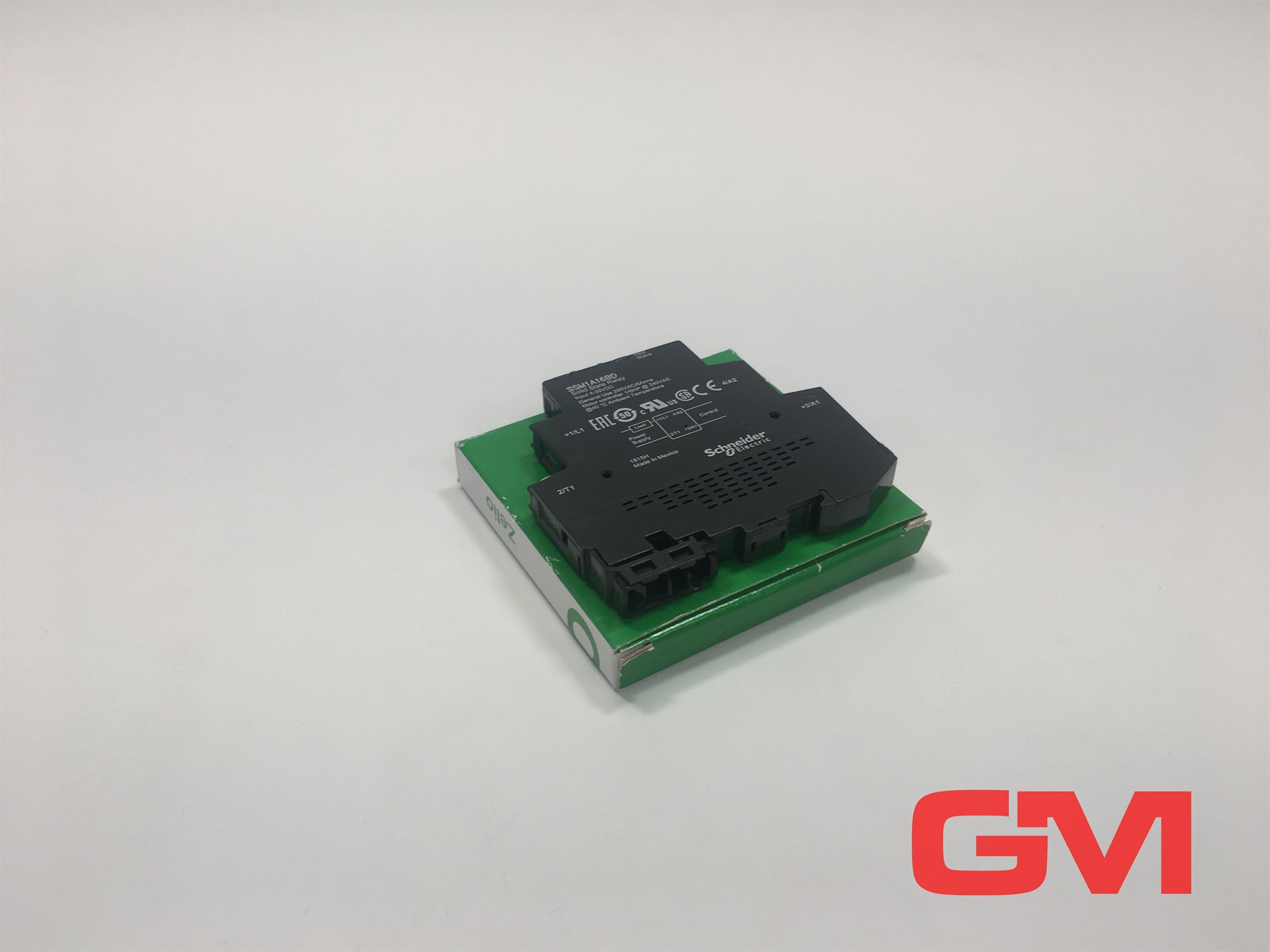

Schneider Electric SSM1A16BD

The modular solid state relay operates on a single phase and is equipped for DIN rail installation. It supports a control circuit voltage of 4 to 32V DC and can handle output voltages between 24 to 280V AC, making it suitable for resistive loads. The device features zero voltage switching, enhancing reliability and reducing electrical noise.

With a load current range of 0.15 to 6 A and a maximum rated load voltage of 280V AC, it is capable of managing significant electrical demands. A built-in visual indicator provides real-time status of the input. The relay also includes a heatsink that optimizes performance and minimizes the need for additional components.

Key specifications include a response time of 0.5 cycles for both turn-on and turn-off, and a maximum leakage current of 0.1 mA in the off-state. The relay's construction adheres to various standards such as IEC 62314 and IEC 61000, ensuring compliance with necessary safety and functionality regulations. The unit is compact with dimensions of 90.3 mm in height, 11 mm in width, and 83.7 mm in depth, while weighing only 0.05 kg. Notably, it operates effectively in ambient temperatures ranging from -30 to 80 °C, and is protected to IP20 standards.
