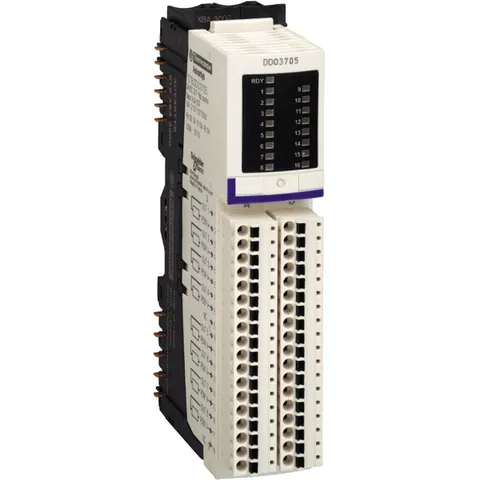

Schneider Electric STBDDO3705KC

The Modicon STB Discrete Output Kit, a part of the Modicon STB range, is an offering of modular distributed I/O. This basic discrete output kit provides 16 discrete outputs with solid state output. It operates at a rated supply voltage of 24V DC and consumes a current of 135mA at 5V DC for logic bus. This product is compatible with most major fieldbus networks and is IP20 rated.

With dimensions measuring 128.3mm (width) x 70mm (depth) x 13.9mm (height), it weighs 0.086kg. It is suitable for applications in packaging, bottling, assembly, distribution, textile, printing, and semiconductor machines.

This product is certified by FM Class 1 Division 2, CE, UL, and CSA. It meets EN/IEC 61131-2 type 3 standards. This kit is suitable for use with power distribution module STBPDT3100/3105 and I/O base STBXBA3000. The kit includes STBXBA3000 base, STBXTS2180, 18-terminal spring clamp connector, and STBDDO3705 module.
