Schneider Electric TM221M16TG

Name: logic controller, Modicon M221, 16 IO, transistor, PNP, spring
Brand: Schneider Electric
SKU: TM221M16TG

logic controller, Modicon M221, 16 IO, transistor, PNP, spring

1 / 2

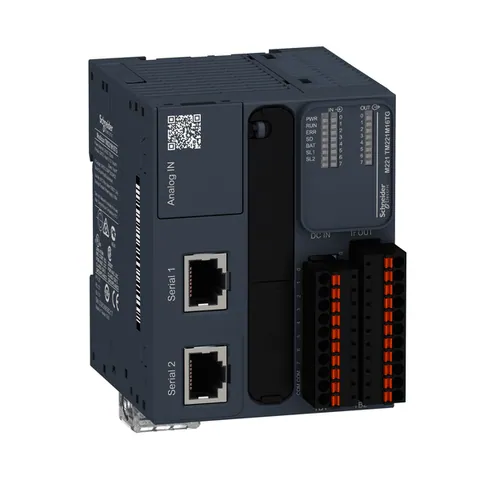

Imagen de catálogo del fabricante

Descripción del producto

Ciclo de vida:

controller M221 16 IO transistor PNP spring This product is part of the Modicon M221 range, an offer of programmable logic controllers for hardwired architectures. This logic controller provides 8 discrete, 4 fast inputs, 8 transistor outputs, 2 fast outputs with PNP transistor output with 10bit resolution. The I/O are connected on removable spring terminal blocks. It is a Modicon logic controller with a rated supply/output voltage of 24V DC, an output current of 0.5A with sink or source input logic and positive output logic. This product requires minimal installation and offers tremendous versatility. Integrated connections are USB port with mini B USB 2.0 connector, non isolated serial link serial 1 with RJ45 connector and RS485 interface and non isolated serial link serial 2 with RJ45 connector and RS232/RS485 interface. It is a Modicon M221 controller with 256kB for user application and data RAM, internal variables RAM, 256kB built-in flash memory and a SD card memory capacity of 2GB. It is an IP20 rated product. Its dimensions are 70mm (Width) x 70mm (Depth) x 90mm (Height). It weighs 0.264kg. This product is certified by CE, IACS E10, CSA, RCM, LR, ABS, DNV-GL, EAC and CULus. It meets EN/IEC 61010-2-201, EN/IEC 61131-2 and EN/IEC 60664-1 standards. The Modicon M221 logic controllers are programmed with EcoStruxure Machine Expert - Basic software. It supports DIN rail mount.

¿Necesita más información?

Llámanos al:+48 17 778 34 19

Comparar ofertas

Métodos de pago:

Detalles de la oferta

Oferta de:: Proveedor de confianza — Estados Unidos, miembro desde 2023
Disponibilidad:: 3 uds.
En stock
Actualizado el: 06-10-2026
Garantía:: 12 meses
Condición:: Nuevo Precintado de Fábrica

Nuevo Precintado de Fábrica - Un artículo completamente nuevo, sin usar, sin abrir, sin daños, en su embalaje original sellado por el fabricante.

El Vendedor es responsable de enviar el producto y facturar

Especificaciones

Marca: Schneider Electric
Discrete Output Type: transistor
Range Of Product: Modicon M221
Discrete Output Number: 8 transistor 2 fast output
Product Or Component Type: logic controller
Discrete Output Current: 0.5 A
Discrete Output Voltage: 24 V DC

Ofertas disponibles

(4)

Condición	Disponibilidad	Proveedor	Garantía
Condición Nuevo Precintado de Fábrica	Disponibilidad 3 uds. En stock Actualizado el: 06-10-2026	Proveedor Estados UnidosProveedor de confianza — miembro desde 2023	Garantía 12 meses
Condición Nuevos excedentes	Disponibilidad Bajo pedidoPlazo de entrega: 21 días	Proveedor RumaníaProveedor de confianza — miembro desde 2023, 1–4 empleados	Garantía No indicada
Condición Nuevo Precintado de Fábrica	Disponibilidad Bajo pedidoPlazo de entrega por confirmar	Proveedor AlemaniaProveedor de confianza — miembro desde 2024	Garantía No indicada
Condición Nuevo Precintado de Fábrica	Disponibilidad Bajo pedidoPlazo de entrega por confirmar	Proveedor ItaliaProveedor de confianza — miembro desde 2021, 10–19 empleados	Garantía 12 meses

Oferta con plazo de entrega del fabricante

Directamente del fabricante, con un plazo de entrega confirmado, predecible y totalmente transparente.

Documentos

Hoja de datos

Hoja de datos para Schneider Electric TM221M16TG, incluyendo especificaciones y características.

Descargar hoja de datos

Modelos CAD

Modelo CAD 3D y planos técnicos, listos para tu software de diseño.

Descargar modelo CAD

Datos del producto actualizados: 06-10-2026
