Schneider Electric TWDXCAT3RJ

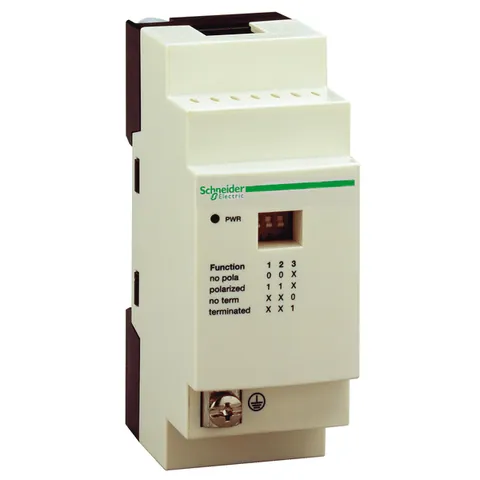

This tap junction box is an integral component of the Twido range, specifically designed for enhancing connectivity in Modicon M200 PLCs. It facilitates RS485 serial links with its configuration of 1 main RJ45 connector and 2 additional RJ45 connectors for tap-off connections. The module supports prepolarised lines (2 R 620 Ohm) and includes a line end adaptor (RC 120 Ohm, 1 nF) to ensure optimized performance.

With a net weight of 0.08 kg and compact dimensions suitable for 35 mm symmetrical DIN rail mounting, this unit measures 51 mm in width, 84.6 mm in depth, and 90 mm in height. The design adheres to various international standards, being CE marked and certified under IEC/EN 61131-2, UL 508, and IEC/EN 61010-2-201.

It is tailored to work exclusively with the Modicon M200 logic controller, making it a specialized solution for specific automation needs. Its I/O response time of 4 ms for both turn-on and turn-off contributes to its reliability in demanding applications.
