Schneider Electric
VW3A3424

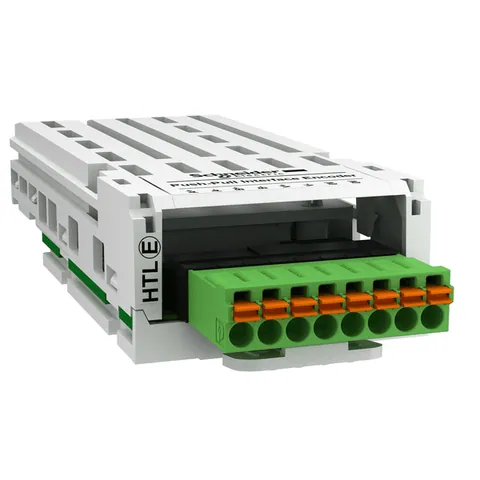

High threshold logic encoder interface module, Altivar, 12 to 24V, 0.1 to 0.2A, 1 removable spring connector
- Consigue plazos de pago de hasta 90 días de 500+ proveedores.
- Descuentos de reventa de hasta el 40%!
€99.90
1
Formas de pago:
Un total de 248 Parts In-Stock de 28 Distributors
Condiciones del producto:
Oferta con plazo de entrega del fabricante
Entrega:Bajo pedido
El mejor precio:
€93.83
Additional Information
- Part Number
- VW3A3424
- UNSPSC
- 39122001
- Tariff Code
- 8517620090
- Country of Origin
- ID
Specifications
- Range Of Product
- Altivar
- Product Or Component Type
- encoder interface module
- Encoder Type
- high threshold logic (HTL)
- Range Compatibility
- Altivar Process ATV900 || Altivar Process Modular || Altivar Machine ATV340
- [Us] Rated Supply Voltage
- 12 V DC || 15 V DC || 24 V DC
Offer Sustainability
- Rohs Exemption Information
- Yes
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Maximum Cable Distance Between Devices
- 500 m
- Connector Type
- 1 removable spring connector
- Net Weight
- 0.15 kg
- Maximum Supply Current
- 0.2 A 12 V DC || 0.175 A 15 V DC || 0.1 A 24 V DC
- Protection Type
- short-circuit protection || overload protection
- Input Signal
- push-pull differential A/AB/B || push-pull single ended AB || push-pull single ended A || open collector differential A/AB/B || open collector PNP AB || open collector NPN AB || open collector PNP A || open collector NPN A
- Maximum Operating Frequency
- 300 kHz
