Schneider Electric
VW3A7741

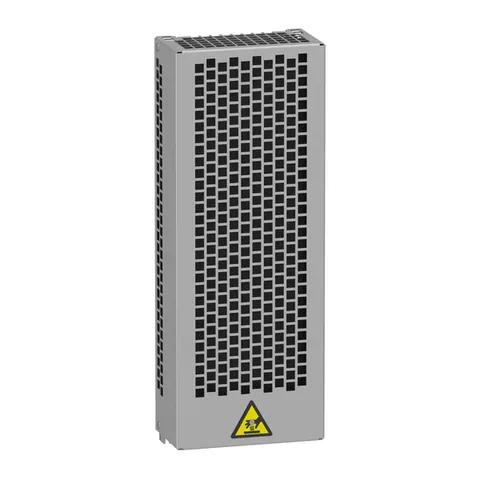

braking resistor, Altivar, 60Ohms, 0.5kW, IP20
- Consigue plazos de pago de hasta 90 días de 500+ proveedores.
- Descuentos de reventa de hasta el 40%!
Enviar solicitud de precio
1
Formas de pago:
Un total de 218 Parts In-Stock de 14 Distributors
Condiciones del producto:
Oferta con plazo de entrega del fabricante
Entrega:1 - 2 días laborables
El mejor precio:
€207.61
Additional Information
- Part Number
- VW3A7741
- UNSPSC
- 26112105
- Tariff Code
- 8533290000
- Country of Origin
- DE
Specifications
- Ohmic Value
- 60 Ohm
- Product Or Component Type
- braking resistor
- Range Compatibility
- Altivar Process ATV900 || Altivar Machine ATV340
Complementary
- Height
- 465 mm
- Protection Type
- thermal protection via drive
- Net Weight
- 3.8 kg
- Electrical Connection
- terminal <= 10 mm² / AWG 8 drive
- Product Compatibility
- variable speed drive ATV930 wall mount 5.5 kW 380...480 V medium cycle || variable speed drive ATV930 wall mount 7.5 kW 380...480 V medium cycle || variable speed drive ATV950 wall mount 5.5 kW 380...480 V medium cycle || variable speed drive ATV950 wall mount 7.5 kW 380...480 V medium cycle || variable speed drive ATV930 wall mount 1.5 kW 200...240 V severe cycle || variable speed drive ATV340 4 kW 380...480 V medium cycle || variable speed drive ATV340 5.5 kW 380...480 V medium cycle || variable speed drive ATV930 7.5 kW 500...690 V medium cycle || variable speed drive ATV930 11 kW 500...690 V medium cycle || variable speed drive ATV930 10 hp 600 V medium cycle || variable speed drive ATV930 15 hp 600 V medium cycle
- Duty Cycle
- severe cycle (heavy duty) <54 s braking with 100 % braking torque for a 120 s cycle || medium cycle (normal duty) <4 s braking with 135 % braking torque for a 40 s cycle || medium cycle (heavy duty) <4 s braking with 165 % braking torque for a 40 s cycle || severe cycle (heavy duty) <6 s braking with 165 % braking torque for a 120 s cycle
- Width
- 175 mm
- Depth
- 100 mm
- Average Power Available
- 0.5 kW 50 °C
Environment
- Ambient Air Temperature For Operation
- 0-50 °C
- Ambient Air Temperature For Storage
- -25-70 °C
- Ip Degree Of Protection
- IP20
Offer Sustainability
- Rohs Exemption Information
- Yes
- Mercury Free
- Yes
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Reach Free Of Svhc
- Yes
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
