Schneider Electric
VZ3V32C100
1 / 1
Descripción
Activo maduro

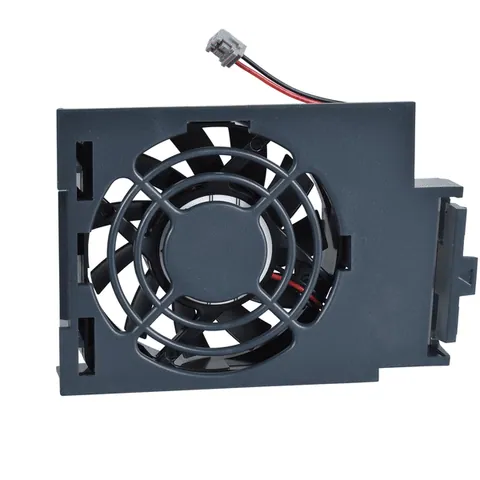

This product is a wear part for Drive Altivar 32 and Altivar 320. This Fan for variable speed drive is a cooling accessory. It works for variable speed drives ATV32 from 5.5kw to 7.5kw and a rated voltage from 380V to 500V, for Altivar 320 from 5.5kw to 7.5kw and a rated voltage from 380V to 600V. This Fan increase the Drive life time. 1 Fan required for all drive ranges. This fan has a fixed type body which is made of plastic. Its dimensions are 23cm (width) x 17cm (Length) x 7cm (Height) and weighs 280g. This power fan is compatible with ATV320U55M3 to U75M3C, ATV320U55N4B to U75N4B, ATV320U55N4C to U75N4C, ATV320U55S6C to U75S6C. This kit include 1 Fan, 1 Mounting bracket, 1 Instruction sheet.- Country of Origin
- ID
- Part Number
- VZ3V32C100
- Tariff Code
- 8414591500
- UNSPSC
- 39122004
- Consigue plazos de pago de hasta 90 días de 500+ proveedores.
- Descuentos de reventa de hasta el 40%!
Enviar solicitud de precio
1
Formas de pago:
Offer Sustainability
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Rohs Exemption Information
- Yes
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Reach Free Of Svhc
- Yes
Complementary
- Product Compatibility
- variable speed drive ATV32 5.5 kW, 380...500 V three phase || variable speed drive ATV32 7.5 kW, 380...500 V three phase || variable speed drive ATV320...B 5.5 kW, 380...500 V three phase || variable speed drive ATV320...B 7.5 kW, 380...500 V three phase || variable speed drive ATV320...C 5.5 kW, 200...240 V three phase || variable speed drive ATV320...C 7.5 kW, 200...240 V three phase || variable speed drive ATV320...C 5.5 kW, 525...600 V three phase || variable speed drive ATV320...C 7.5 kW, 525...600 V three phase
- Range Compatibility
- Altivar 32 || Altivar 320
- Kit Composition
- fan || mounting bracket || instruction sheet
- Accessory / Separate Part Destination
- variable speed drive
Specifications
- Accessory / Separate Part Category
- cooling accessory
- Product Or Component Type
- fan
- Accessory / Separate Part Type
- fan kit
