Schneider Electric

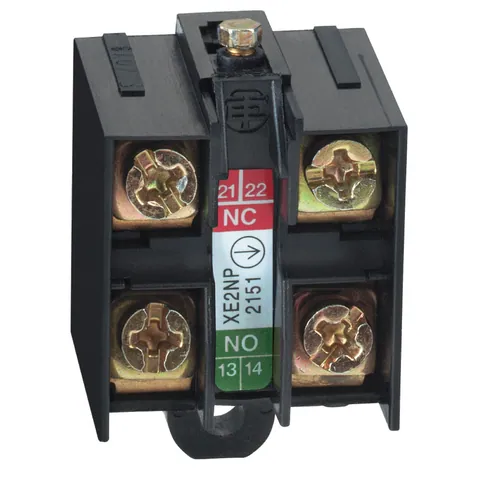

XE2NP2151
Limit switch contact block, Limit switches XC Standard, 1NC+1 NO, slow break, break before make
- Consigue plazos de pago de hasta 90 días de 500+ proveedores.
- Descuentos de reventa de hasta el 40%!
€9.00
1
Formas de pago:
Un total de 134 Parts In-Stock de 15 Distributors
Condiciones del producto:
Oferta con plazo de entrega del fabricante
Entrega:Bajo pedido
El mejor precio:
€3.80
Additional Information
- Part Number
- XE2NP2151
- UNSPSC
- 39121522
- Tariff Code
- 8538908140
- Country of Origin
- US
Specifications
- Range Of Product
- Telemecanique Limit switches XC Standard
- Product Or Component Type
- limit switch contact block
- Associated Body
- ZCKM5 || ZCKL5 || ZCP25 || ZCKJ5 || ZCD25 || ZCKS5 || ZCKJ5D
- Series Name
- standard format
- Contacts Type And Composition
- 1 NO + 1 NC
- Contact Operation
- slow-break, break before make
- Device Short Name
- XE2N
- Number Of Poles
- 2
Contractual warranty
- Warranty
- 18 months
Complementary
- Short-Circuit Protection
- 10 A cartridge fuse gG
- Minimum Actuation Speed
- 6 m/min
- Contacts Material
- silver plated contacts
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV IEC 60664 || 6 kV IEC 60947-1
- Electrical Connection
- screw-clamp terminals 1 x 0.5...2 x 2.5 mm²
- [Ui] Rated Insulation Voltage
- 300 VUL 508 || 500 V 3)IEC 60947-1 || 300 VCSA C22.2 No 14
- Electrical Durability
- 5000000 cycles, DC-13 120 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 24 V, 13 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 48 V, 9 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
- Positive Opening
- with
- Contacts Insulation Form
- Zb
- Contact Code Designation
- A300, AC-15 (Ue = 240 V), Ie = 3 A 10 A EN/IEC 60947-5-1 appendix A || Q300, DC-13 (Ue = 250 V), Ie = 0.27 A EN/IEC 60947-5-1 appendix A
- Product Compatibility
- XCKD || XCKS || XCR || XCKJ || XCKL || XCKM || XCKP
- Maximum Resistance Across Terminals
- 25 mOhm IEC 60255-7 category 3
Offer Sustainability
- Rohs Exemption Information
- Yes
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP110614EN
- Sustainable Offer Status
- Green Premium product
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Reach Free Of Svhc
- Yes
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
