Schneider Electric XS1N30PC410D

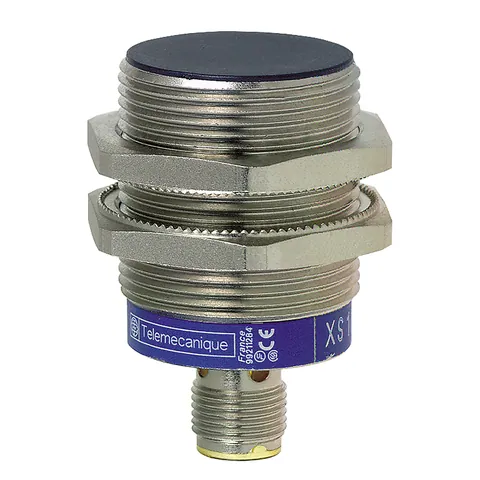

The XS1 M30 inductive proximity sensor is designed for non-contact detection of metallic objects, facilitating applications where physical contact may cause damage or wear. With a nominal sensing distance of 10 mm, this cylindrical sensor is flush mountable and features a brass housing for durability.

Measuring 54 mm in length and 30 mm in diameter, this sensor utilizes an M12 male connector with four pins for electrical connection. Operating within a voltage range of 12 to 24 VDC, it includes reverse polarity protection and a PNP output configuration, providing both normally open (NO) and normally closed (NC) functions. The sensor is rated for a maximum switching frequency of 1000 Hz and can handle a load current of up to 200 mA, ensuring reliable performance in various industrial environments.

Constructed to withstand harsh conditions, the XS1 M30 is rated IP69K for water and dust resistance, conforming to DIN 40050, and is also compliant with IEC standards for durability. The sensor operates effectively within an ambient temperature range of -25°C to +70°C and can be stored in temperatures as low as -40°C and as high as 85°C. Its robust design is complemented by a long service life of approximately 20 years, making it suitable for use in mobile equipment applications. The sensor conforms to various safety standards, including SIL 2 and PL d, ensuring high reliability.
