Schneider Electric XUVR1212PBNM8

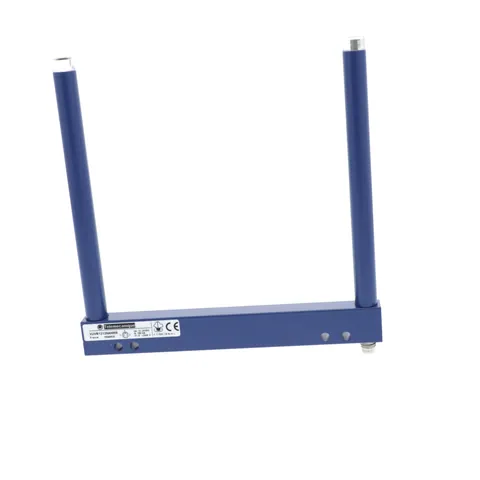

The Photoelectric sensor XU XUV is designed as a single mode optical fork with a passage width of 120 mm and a depth of 120 mm. Constructed from painted aluminium and polyamide, it is suitable for installation on surfaces or brackets due to its four mounting points. The sensor is rated for IP65 and IP67, ensuring protection against dust and water, making it suitable for harsh operational environments.

Operating temperature ranges from -25°C to +55°C, accommodating both cold and hot conditions. The sensor’s nominal sensing distance is consistent at 120 mm. It features an M8, 3-pin male connector that ensures compatibility with existing sensor cabling in the market.

With a maximum switching frequency of 4000 Hz and a current consumption of less than 20 mA, this sensor is efficient in discrete output signaling through a solid-state output type. The sensor is also equipped with a yellow LED for output state indication. Compliance with CE, UL, and CSA certifications confirms its adherence to established safety and performance standards.
