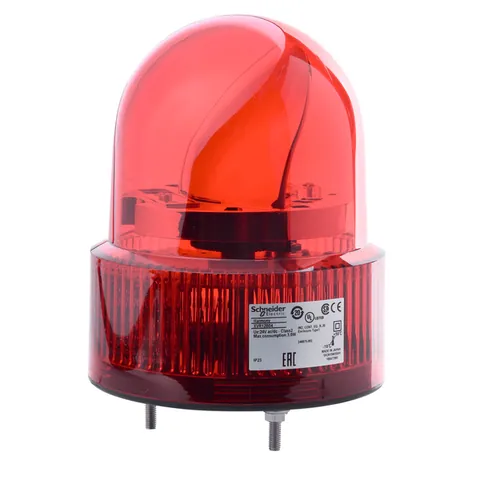

Schneider Electric XVR12B04S

The rotating beacon is designed for long-distance signaling applications, particularly suitable for the iron and steel industry, industrial handling vehicles, and safety applications. It operates within a temperature range of -10°C to 50°C and has a storage temperature range of -35°C to 70°C. The device is equipped with a protective treatment classified as TC and adheres to electrical shock protection class II as per IEC 61140.

With a diameter of 120mm and a height of 150mm, this beacon weighs 500g and is constructed from ABS for the body part and AS for the globe. The light source is a high luminosity red LED, ensuring effective illumination, while the integrated buzzer provides sound signaling capabilities at a noise level adjustable from 50 to 90 dB at a distance of 1 meter. The beacon is rated IP23, conforming to IEC 60529, ensuring protection against water and solid objects.

It is powered by a supply voltage of 24V AC/DC and has specified limits of 19-30V DC and 21.6-26.4V AC. The device has a current consumption of 196mA and a rated impulse withstand voltage of 0.8 kV. The product is CE, UL, and CSA certified, and it meets various environmental regulations, including RoHS compliance.
