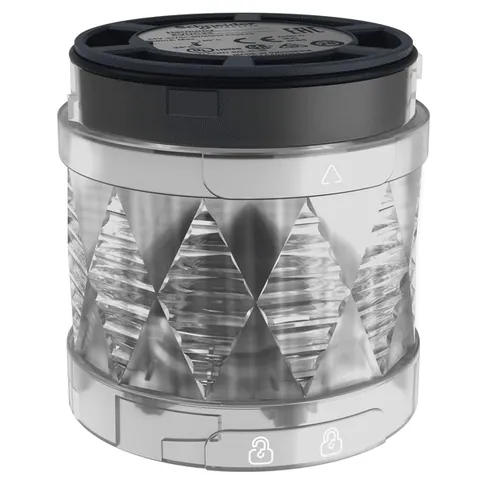

XVUC29

Additional Information

Part Number

XVUC29

UNSPSC

32151501

Tariff Code

8531809026

Country of Origin

ID

Complementary

[Us] Rated Supply Voltage

24 V AC/DC

Material

PC (polycarbonate) V-2 UL 94 || PC (polycarbonate) V-0 UL 94

Current Consumption

<= 70 mA

Length

50 mm

Net Weight

0.064 kg

Maximum Power Dissipation In W

1.5 W

Signalling Type

steady || rotating || flashing || blinking

Assembly Style

up to 4 units with buzzer || customer assembly, up to 5 units

Signalling Type

steady/blinking/flashing/rotating

Flashing Frequency

1 Hz blinking || 0.23 Hz slow flashing || 7.26 Hz fast flashing || 2.33 Hz slow rotating || 3.3 Hz fast rotating

Environment

Product Certifications

CE || CSA || UL

Ambient Air Temperature For Operation

-25-50 °C

Ip Degree Of Protection

IP65

Vibration Resistance

2 gn

Ambient Air Temperature For Storage

-40-70 °C

Specifications

Range Of Product

Harmony XVU

Mounting Diameter

60 mm

Light Source

LED, multi-colour

Product Or Component Type

modular tower light

Component Name

XVU

Beacon Or Indicator Bank Unit Type

LED unit

Light Source Colour

green || yellow || white || blue || amber || red

Device Application

automotive || packaging machine || machine tools

Offer Sustainability

Rohs Exemption Information

Yes

Mercury Free

Yes

Environmental Disclosure

ENVPEP1403004EN

Sustainable Offer Status

Green Premium product

Reach Regulation

Reference contains Substances of Very High Concern above the threshold

California Proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

China Rohs Regulation

X

Circularity Profile

ENVEOLI1403004EN

Eu Rohs Directive

Pro-active compliance (Product out of EU RoHS legal scope)
