Schneider Electric
XVUZ01Q

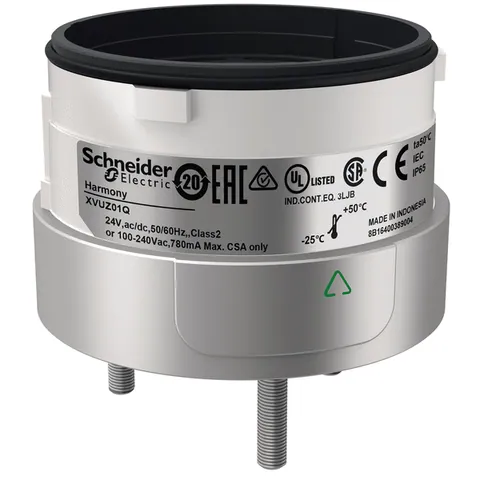

Fixing unit for modular tower lights, Harmony XVU, silver, 60mm, 3 pins direct mounting
- Consigue plazos de pago de hasta 90 días de 500+ proveedores.
- Descuentos de reventa de hasta el 40%!
Enviar solicitud de precio
1
Formas de pago:
Un total de 52 Parts In-Stock de 17 Distributors
Condiciones del producto:
Oferta con plazo de entrega del fabricante
Entrega:1 - 2 días laborables
El mejor precio:
€8.15
Additional Information
- Part Number
- XVUZ01Q
- UNSPSC
- 32151501
- Tariff Code
- 8531909001
- Country of Origin
- ID
Offer Sustainability
- Rohs Exemption Information
- Yes
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP1403004EN
- Sustainable Offer Status
- Green Premium product
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1403004EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Environment
- Product Certifications
- UL || CSA || CE
- Ambient Air Temperature For Operation
- -25-50 °C
- Ambient Air Temperature For Storage
- -40-70 °C
- Ip Degree Of Protection
- IP65
Specifications
- Range Of Product
- Harmony XVU
- Accessory / Separate Part Category
- mounting and fixing accessory
- Mounting Diameter
- 60 mm
- Product Or Component Type
- modular tower light
- Component Name
- XVU
- Accessory / Separate Part Type
- mounting plate
Complementary
- Housing Colour
- silver
- [Us] Rated Supply Voltage
- 24 V AC/DC || 110...240 V AC
- Connections - Terminals
- push-in
- Mounting Support
- direct mounting
- Product Compatibility
- top AC body || top DC body || top swivel mounting support
- Material
- PBT (polybutylene terephthalate) V-0 UL 94 || ABS (acrylonitrile butadiene-styrene) || PC (polycarbonate)
- Net Weight
- 0.063 kg
- Pin Number
- 3
- Length
- 17-17 mm
Documentos
Data Sheet
DescargarModelos CAD
